Honda Pilot: Hood Opener Cable Removal and Installation

Removal/Installation

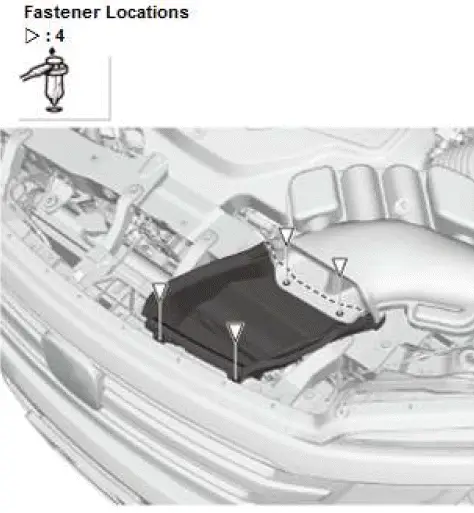

1. Front Bulkhead Cover - Remove

2. Intake Air Guide - Remove

3. Driver's Front Inner Fender - Remove

4. Hood Latch - Remove

5. Hood Release Handle - Remove

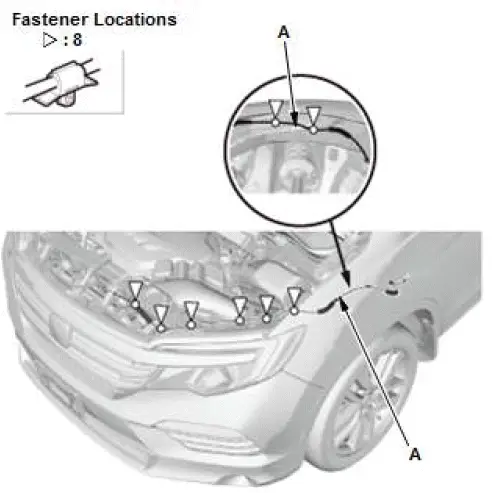

6. Hood Opener Cable - Remove

1. Remove the hood opener cable (A).

NOTE: Be careful not to kink the cable.

7. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

Hood Release Handle Removal and Installation

Removal/Installation

1. Driver's Kick Panel - Remove

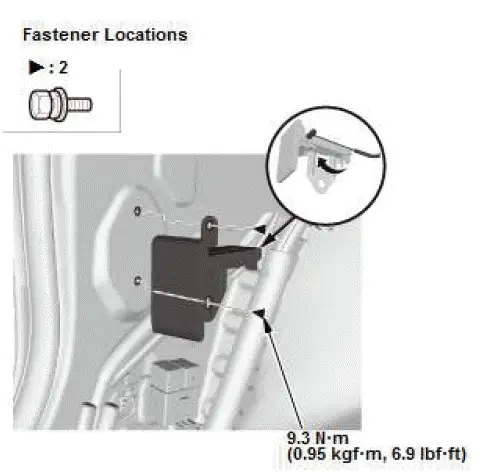

2. Hood Release Handle - Remove

3. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

Hood Seal Removal and Installation

Removal/Installation

1. Hood Seal - Remove

2. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

Hood Insulator Removal and InstallationHorn Removal, Installation, and Test
