Honda Pilot: Horn Removal, Installation, and Test

Removal/Installation

1. Front Bumper - Remove

2. Horn - Remove

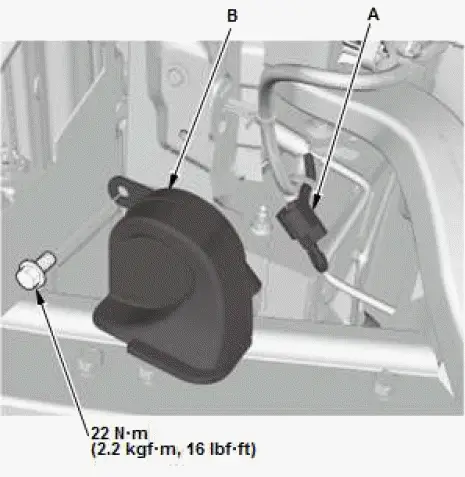

Horn (LOW)

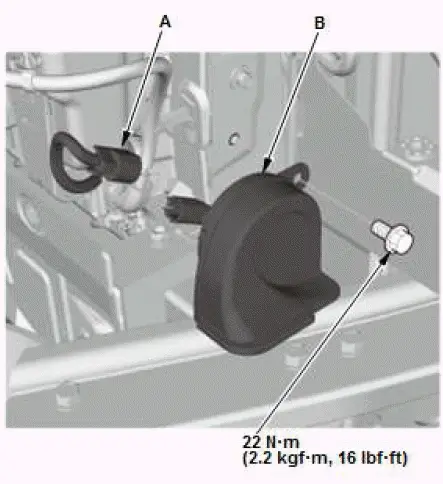

Horn (High) (Except USA model)

1. Disconnect the connector(s) (A).
2. Remove the horn(s) (B).

3. All Parts Removed - Install

1. Install the parts in the reverse order of removal.

Test

1. Horn - Test

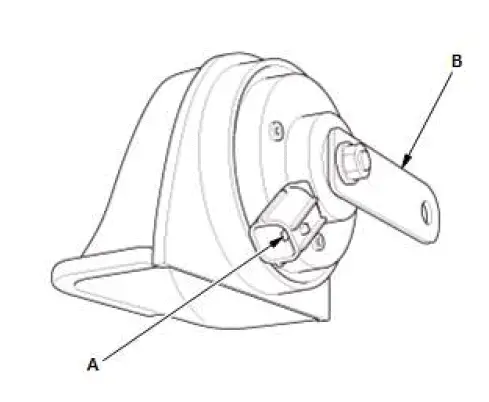

1. Test the horn by momentarily connecting 12 volt battery power to the terminal (A) and grounding the bracket (B).

   The horn should sound.

2. If it fails to sound, replace the horn.
