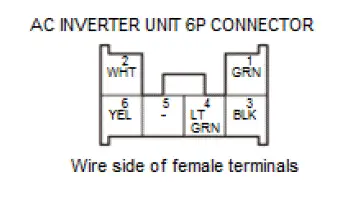

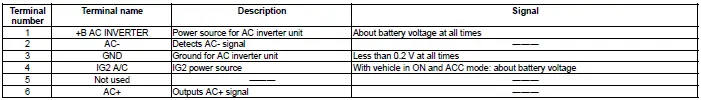

Honda Pilot: AC Inverter Unit Connector for Inputs and Outputs
Honda Pilot 2016-2022 (YF5/YF6) Service Manual / Connector input and output Info / AC Inverter Unit Connector for Inputs and Outputs
ANC/Active Sound Control Microphone Connector for Inputs and Outputs
NOTE: The front ANC/active sound control microphone, front HFL-ANC/active sound control microphone, and the front HFL-navigation-ANC/active sound control microphone are the same parts.

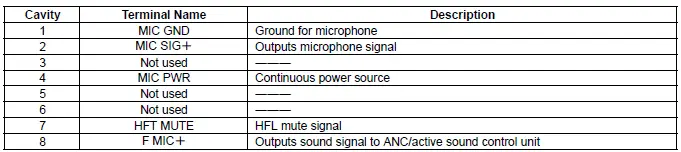

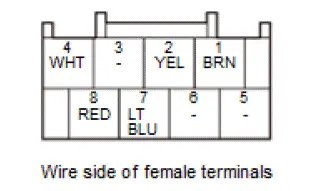

FRONT ANC/ACTIVE SOUND CONTROL MICROPHONE 8P CONNECTOR

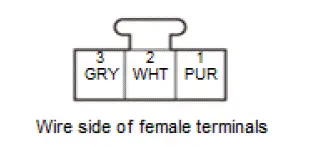

REAR ANC/ACTIVE SOUND CONTROL MICROPHONE 3P CONNECTOR
*1: With auto idle stop system
*2: Without auto idle stop system
ANC/Active Sound Control Unit Connector for Inputs and Outputs

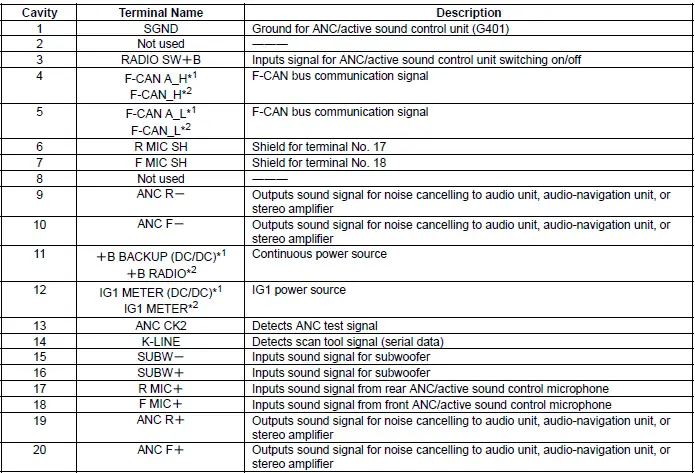

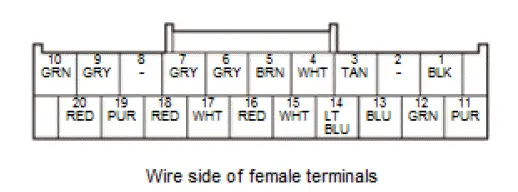

ANC/ACTIVE SOUND CONTROL UNIT 20P CONNECTOR
*1: With auto idle stop system
*2: Without auto idle stop system
