Honda Pilot: Hood Insulator Removal and Installation
Honda Pilot 2016-2022 (YF5/YF6) Service Manual / Remove, Install, Replace, Check info / Hood Insulator Removal and Installation
Removal/Installation

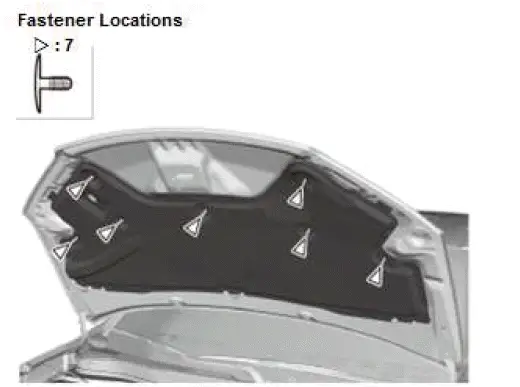

1. Hood Insulator - Remove
2. All Removed Parts - Install
- Install the parts in the reverse order of removal.
Hood Latch Removal and Installation
Removal/Installation
1. Front Bulkhead Cover - Remove

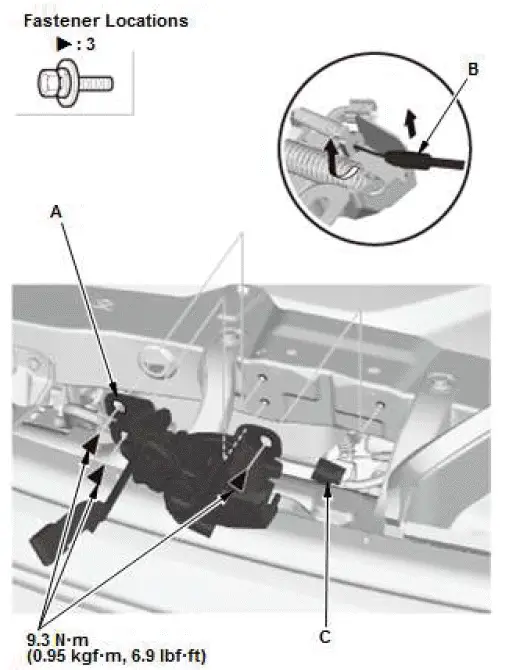

2. Hood Latch - Remove
- Remove the hood latch (A).
- Disconnect the hood opener cable (B) from the latch.
- Disconnect the hood latch switch connector (C).

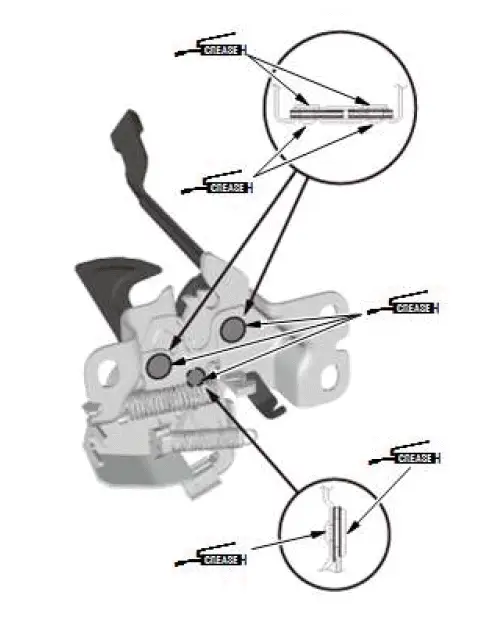

3. All Removed Parts - Install
Honda Pilot 2016-2022 (YF5/YF6) Service Manual
