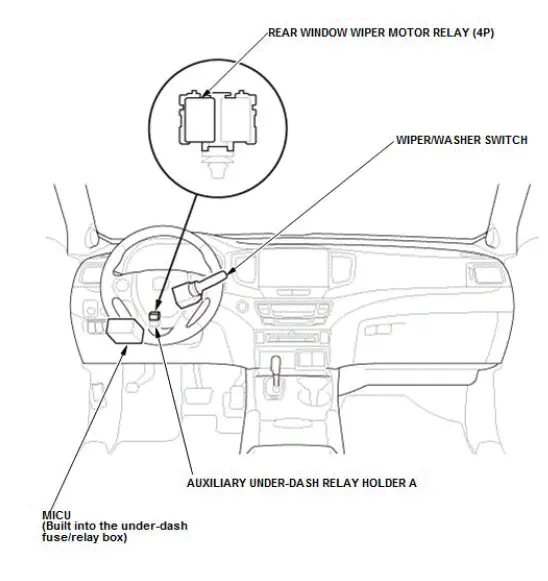

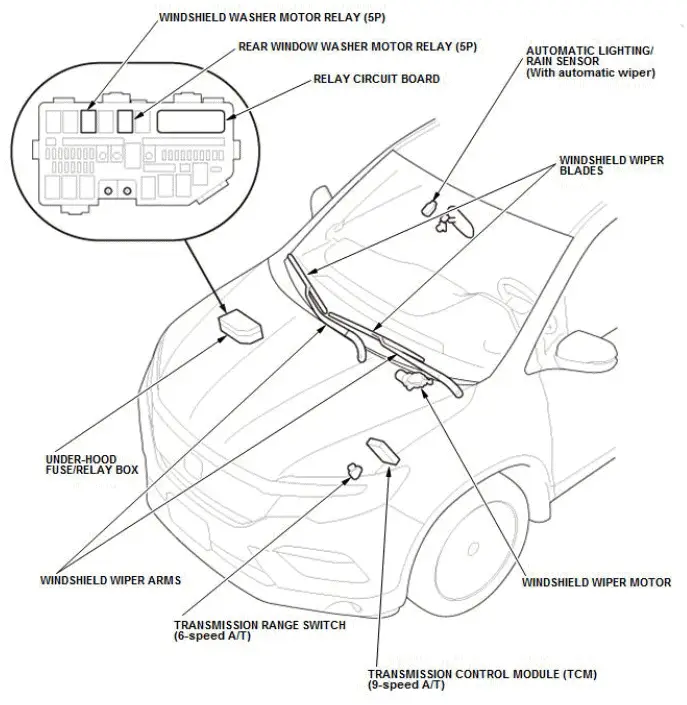

Honda Pilot: Wipers/Washers System Description - Components

Honda Pilot 2016-2022 (YF5/YF6) Service Manual / System Description Info / Wipers/Washers System Description - Components

Wiper/Washer Switch

The wiper/washer switch inputs the switch status to the MICU.

Wiper Motor

The windshield wiper motor is controlled by the MICU. Auto-stop contacts are provided in each motor, and the motor stop position is feed back to the MICU. When the motor temperature becomes high because of an overload etc., the motor is stopped temporarily by its circuit breaker, interrupting the circuit.

Automatic Lighting/Rain Sensor (With Automatic Wiper)

The auto wiper signal or the auto wiper fail signal is sent via the B-CAN to the MICU.

Wipers/Washers System Description - Control/Function

Windshield Wiper

The MICU operation controls the windshield wiper operation according to the wiper switch signal, the washer switch signal, the windshield wiper motor auto-stop (AS) signal, and other input data. Intermittent wiper control, which is vehicle speed-dependent, as well as wiper control when starting up, is performed according to shift position signal, brake switch signal, parking brake switch signal, and vehicle speed signal in addition to wiper HI/LO, wiper mist operation, washer linkage, and other basic operations.

Honda Pilot. System Description Info

Washer

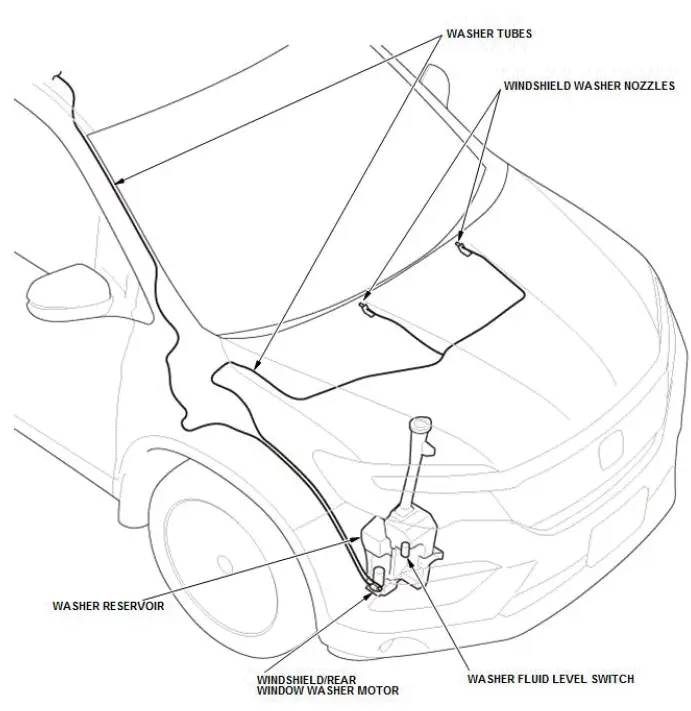

The MICU controls the washer motor with the signal inputs from the washer switch. The integral washer motor uses the differential pressure valves and spray can be switched between the windshield and rear window according to the rotating direction.

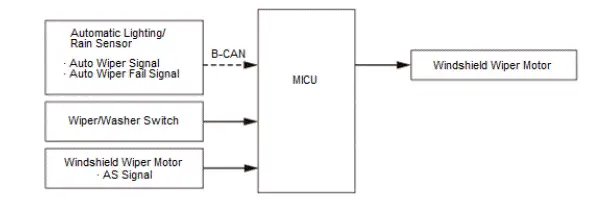

Auto Wiper Function

The auto wiper function is controlled by the MICU based on the automatic lighting/rain sensor signals received. The delay interval setting, the intermittent wiper operation, and the automatic mode switching (LO/HI) are controlled by the MICU. Also, the wiper rain sensitivity can be changed by operating the sensitivity controller on the wiper switch.

Honda Pilot. System Description Info

Wipers/Washers System Description - Overview

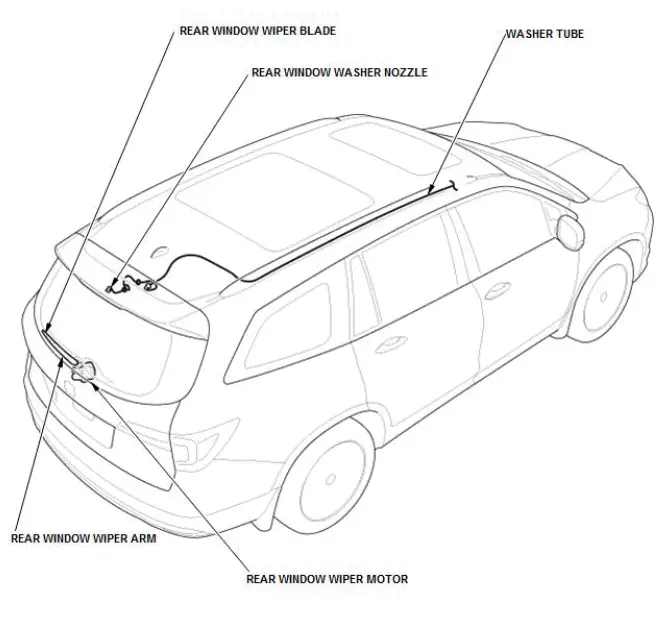

The vehicle is equipped with the pre-set interval intermittent windshield wiper/washer and the rear wiper/washer. The wiper/washer motor is controlled by the MICU based on the signals from the wiper/washer switches.

Honda Pilot. System Description Info

Honda Pilot. System Description Info

Honda Pilot. System Description Info

Honda Pilot. System Description Info

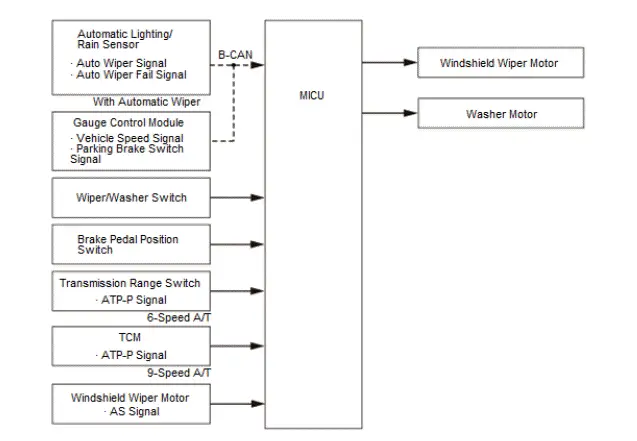

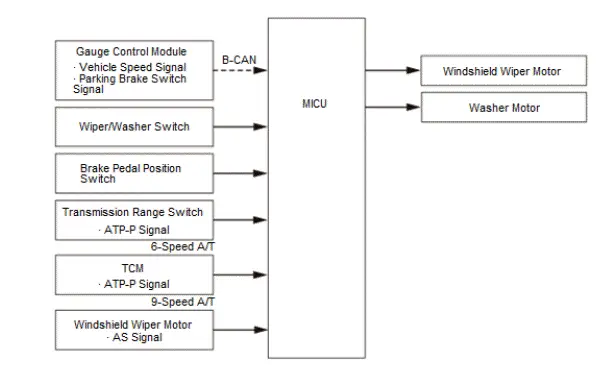

Wipers/Washers System Description - System Diagram

Honda Pilot. System Description Info
