Removal
NOTE: Be careful not to bend or distort the cable.
1. Parking Brake - Release
2. Parking Brake Pedal - Remove

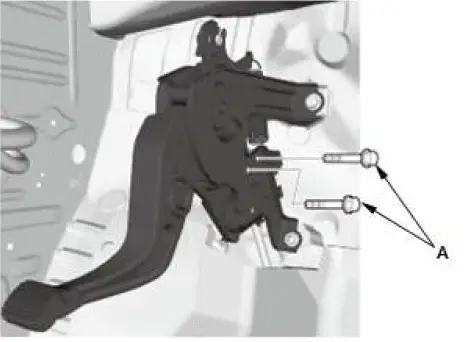

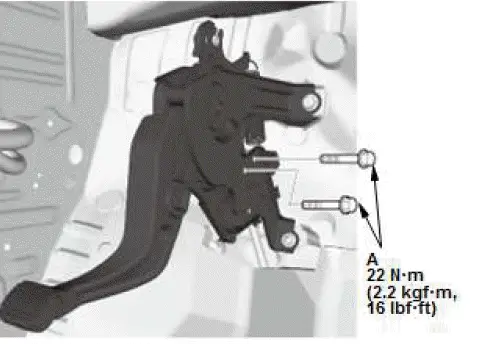

- Remove the parking brake cable mounting bolts (A).

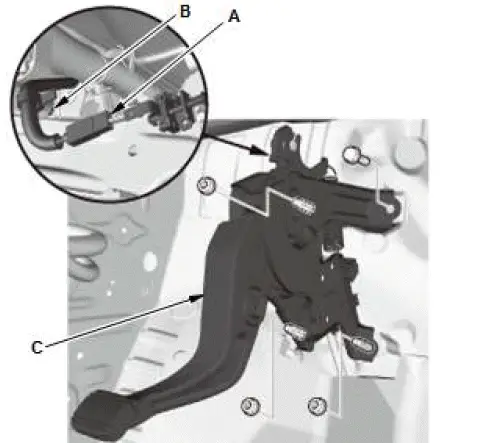

- Disconnect the connector (A).
- Remove the harness clip (B)
- Remove the parking brake pedal assembly (C).

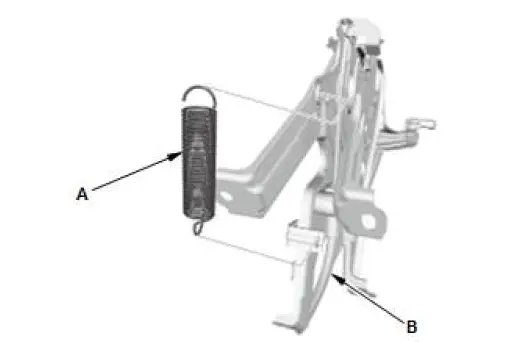

- Remove the spring (A).
- Disconnect the parking brake cable (B) from the parking
brake pedal assembly.

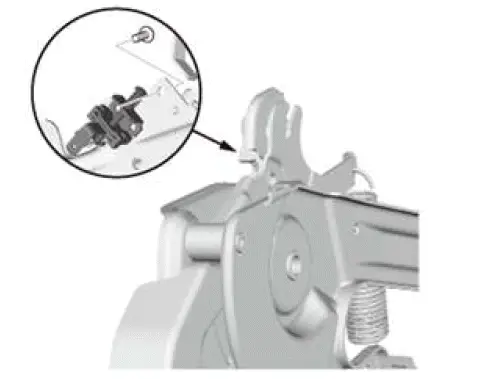

3. Parking Brake Switch - Remove

Installation
NOTE: Be careful not to bend or distort the cable.

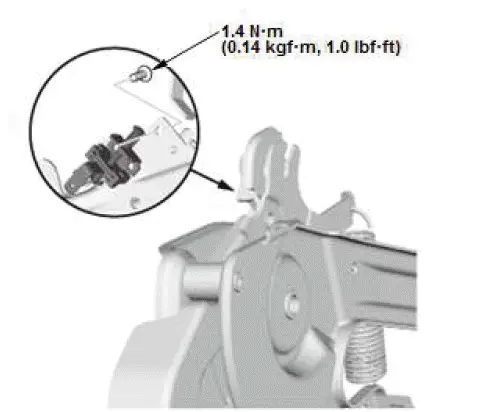

1. Parking Brake Switch - Install

2. Parking Brake Pedal - Install

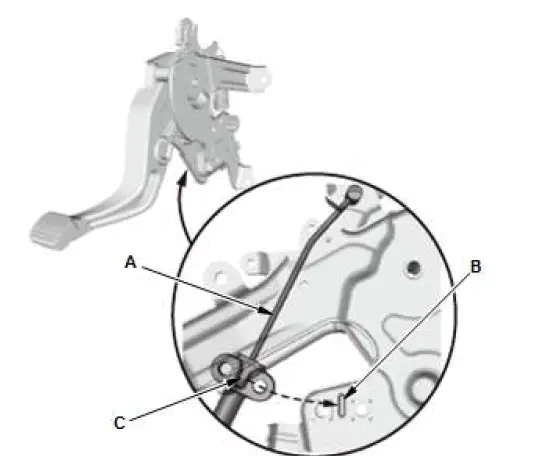

- Install the parking brake cable (A) by aligning the tab (B)
with the groove (C).

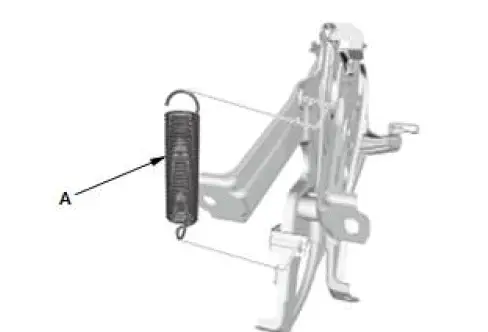

- Install the spring (A).

- Install the parking brake pedal assembly (A).
- Install the harness clip (B)
- Connect the connector (C).

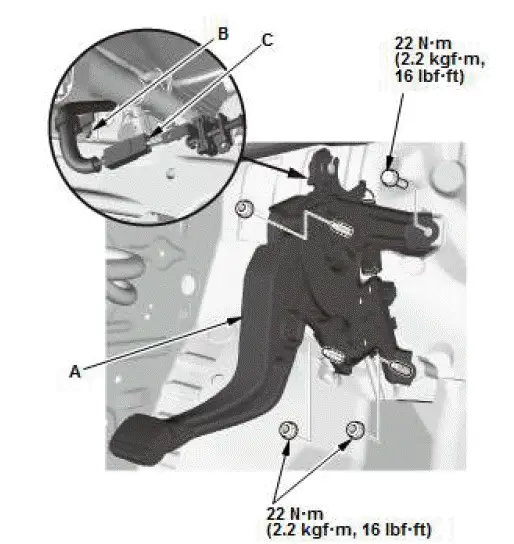

- Install the parking brake cable mounting bolts (A).
3. Parking Brake - Adjust
