Honda Pilot: Parking Brake Cable Removal and Installation

Honda Pilot 2016-2022 (YF5/YF6) Service Manual / Remove, Install, Replace, Check info / Parking Brake Cable Removal and Installation

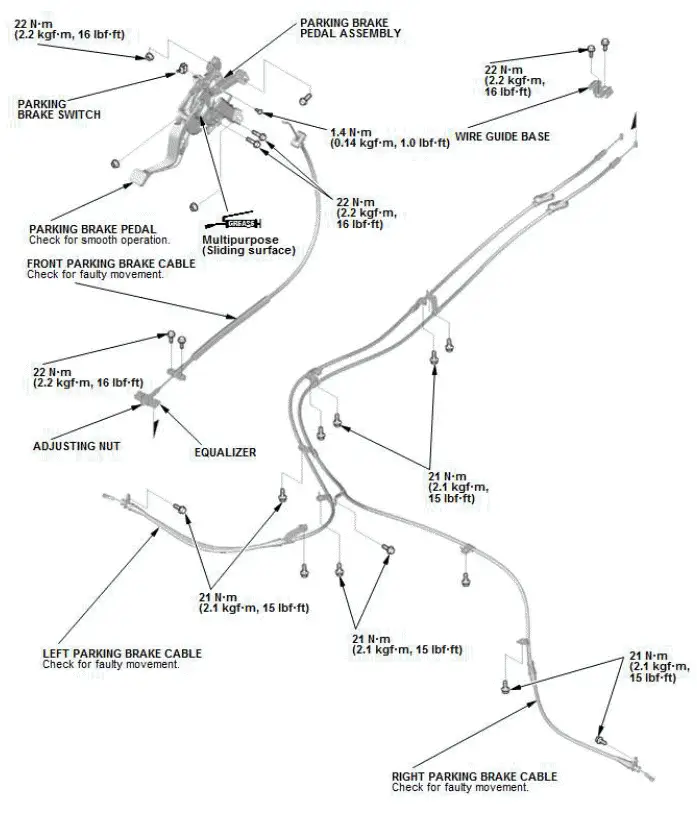

Exploded View

1. Parking Brake Cable - Exploded View

Exploded View

Honda Pilot. Remove, Install, Replace, Check info

Removal/Installation

NOTE: Refer to the Exploded View as needed during this procedure.

Front Parking Brake Cable

1. Front Door Sill Trim - Remove

2. Kick Panel - Remove

3. Center Console Side Cover - Remove (Driver's Side)

4. Parking Brake - Release

5. Parking Brake Cable - Disconnect

Honda Pilot. Remove, Install, Replace, Check info

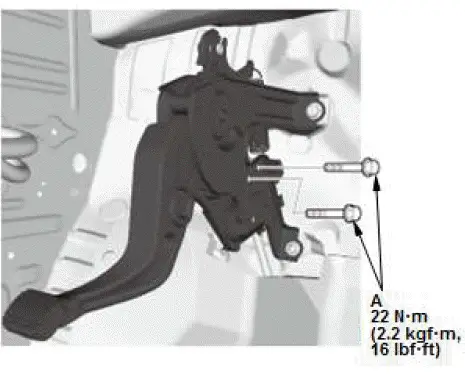

  1. Remove the parking brake cable mounting bolts (A).

Honda Pilot. Remove, Install, Replace, Check info

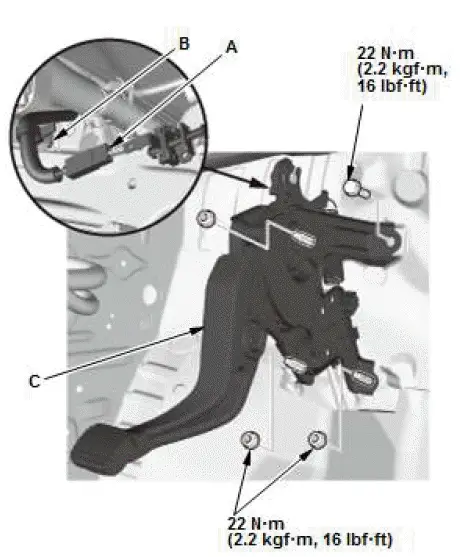

  1. Disconnect the connector (A).
  2. Remove the harness clip (B).
  3. Remove the parking brake pedal assembly (C).
  4. Pull back the carpet as needed.

Honda Pilot. Remove, Install, Replace, Check info

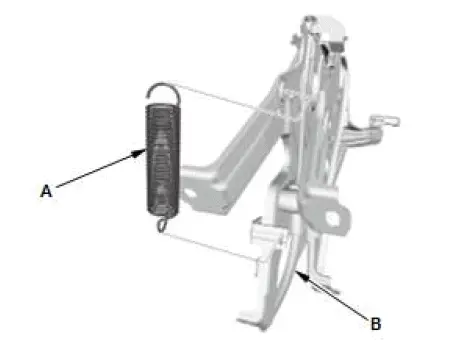

  1. Remove the spring (A).
  2. Disconnect the parking brake cable (B) from the parking brake pedal assembly.

Honda Pilot. Remove, Install, Replace, Check info

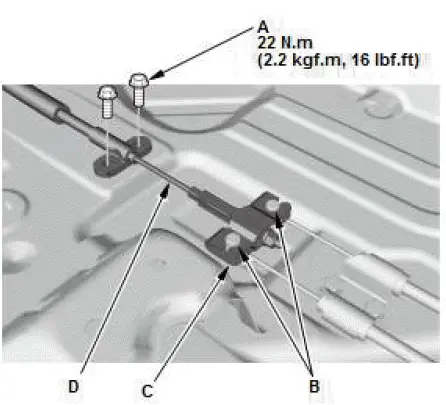

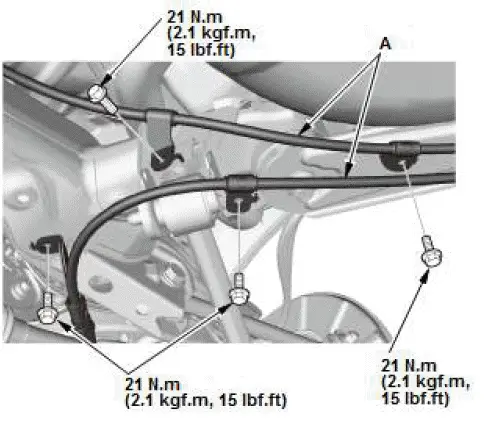

  1. Remove the parking brake cable mounting bolts (A).
  2. Disconnect the parking brake cables (B) from the equalizer (C).
  3. Disconnect the parking brake cable (D).

6. All Removed Parts - Install

  1. Install the parking brake cable in the reverse order of removal.

7. Parking Brake - Adjust

Rear Parking Brake Cables

1. Vehicle - Lift

2. Rear Wheel - Remove

3. Parking Brake - Release

4. Driver's seat - Forward move

5. Parking Brake Cable Front Side - Disconnect

Honda Pilot. Remove, Install, Replace, Check info

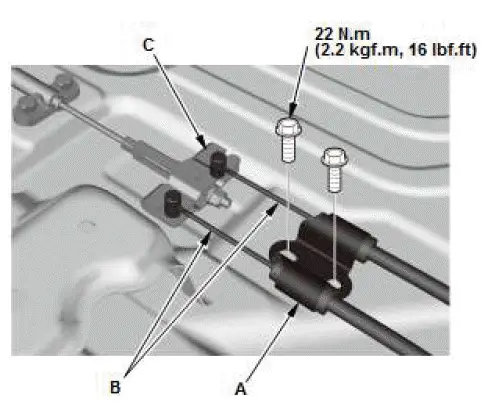

  1. Remove the wire guide base (A).
  2. Disconnect the parking brake cables (B) from the equalizer (C).

6. Rear Brake Disc/Drum - Remove

7. Parking Brake Cable Rear Side - Disconnect

Honda Pilot. Remove, Install, Replace, Check info

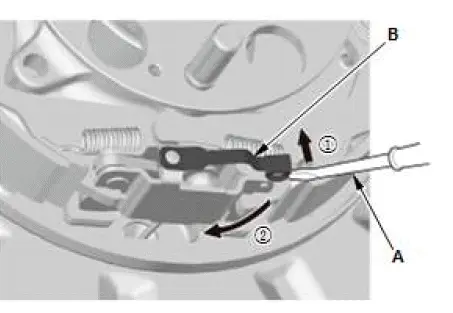

  1. Using a flat-tip screwdriver (A), detach the clip (B) and then rotate the clip down.

Honda Pilot. Remove, Install, Replace, Check info

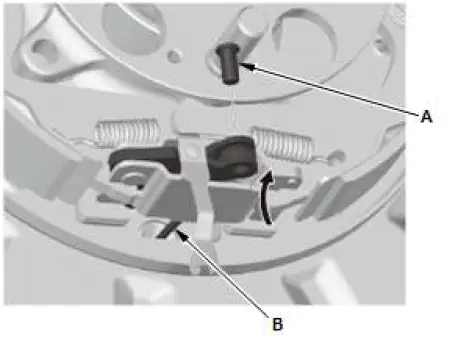

  1. Pull out the link of the parking brake lever assembly, and then remove the pin (A).
  2. Remove the parking brake cable (B) from the parking brake lever assembly.

Honda Pilot. Remove, Install, Replace, Check info

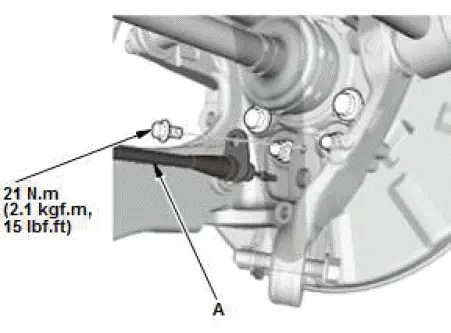

  1. Remove the parking brake cable (A).

8. Parking Brake Cable - Remove

Honda Pilot. Remove, Install, Replace, Check info

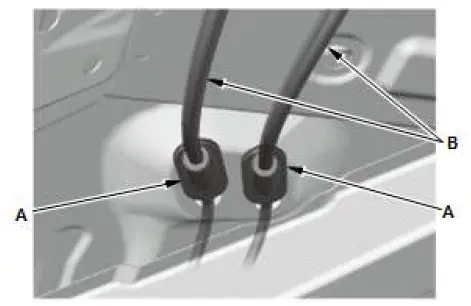

  1. Remove the parking brake cable grommets (A).
  2. Pull out the parking brake cables (B) from the body floor.

Left side

Honda Pilot. Remove, Install, Replace, Check info

Right side

Honda Pilot. Remove, Install, Replace, Check info

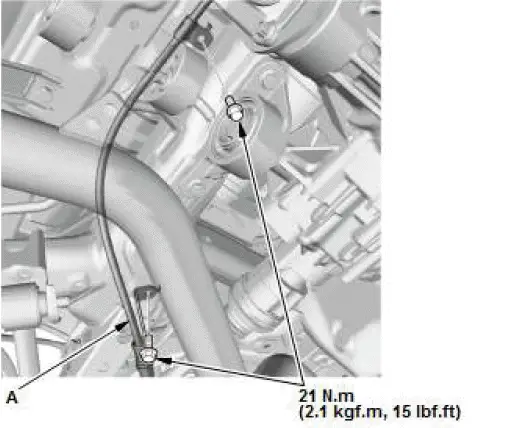

  1. Remove the parking brake cable (A).

NOTE: Be careful not to bend or distort the cable.

9. All Removed Parts - Install

  1. Install the parking brake cable in the reverse order of removal.

10.Parking Brake - Adjust
