Honda Pilot: Front Fog Light Bulb Removal and Installation

Removal/Installation

1. Front Inner Fender - Remove

1. Remove the front inner fender as needed.

2. Front Fog Light Bulb - Remove

Front Fog Light: 35 W

1. Disconnect the connector.

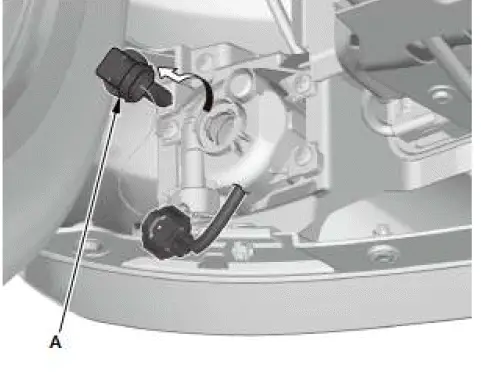

2. Turn the bulb (A) counterclockwise (left side) or clockwise (right side) to remove it from the housing.

3. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

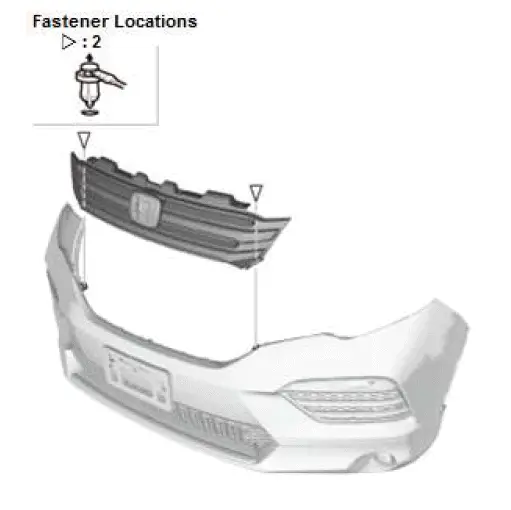

Front Grille Removal and Installation

Removal/Installation

1. Front Bumper - Remove

2. Front Bumper Middle Grille - Remove

3. Front Grille - Remove

4. All Removed Parts - Install

1. Install the parts in the reverse order of removal.
