Honda Pilot: A/T Differential Carrier, Final Driven Gear, and Transfer Drive Gear Removal and Installation

Honda Pilot 2016-2022 (YF5/YF6) Service Manual / Remove, Install, Replace, Check info / A/T Differential Carrier, Final Driven Gear, and Transfer Drive Gear Removal and Installation

Removal

NOTE: Inspect and adjust the bearing preload whenever the differential carrier is removed.

1. Carrier Bearing - Remove

2. Final Driven Gear and Transfer Drive Gear - Remove

With AWD

Honda Pilot. Remove, Install, Replace, Check info

Without AWD

Honda Pilot. Remove, Install, Replace, Check info

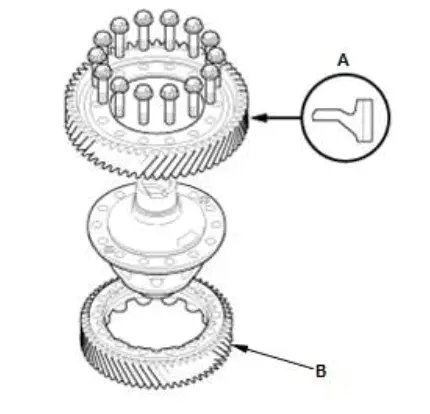

  1. With AWD: Remove the final driven gear (A) and the transfer drive gear (B).

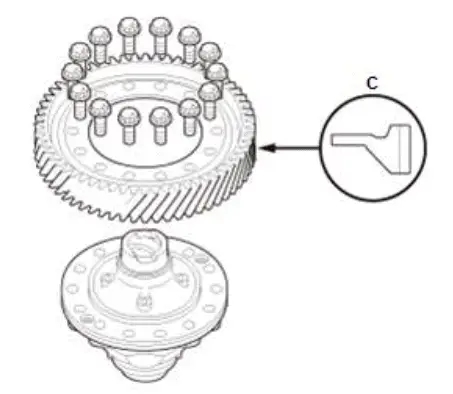

    Without AWD: Remove the final driven gear (C).

    NOTE: The final driven gear bolts have left-hand threads.

Installation

1. Final Driven Gear and Transfer Drive Gear - Install

With AWD

Honda Pilot. Remove, Install, Replace, Check info

Without AWD

Honda Pilot. Remove, Install, Replace, Check info

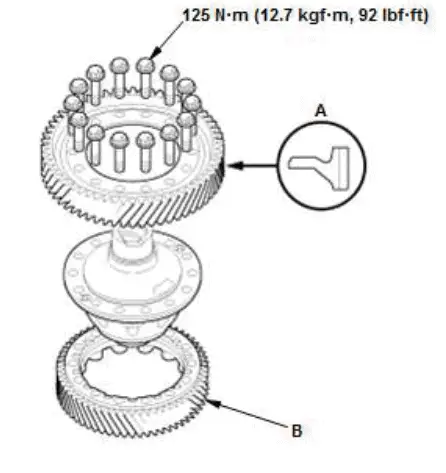

  1. With AWD: Install the final driven gear (A) and the transfer drive gear (B) in the direction shown.

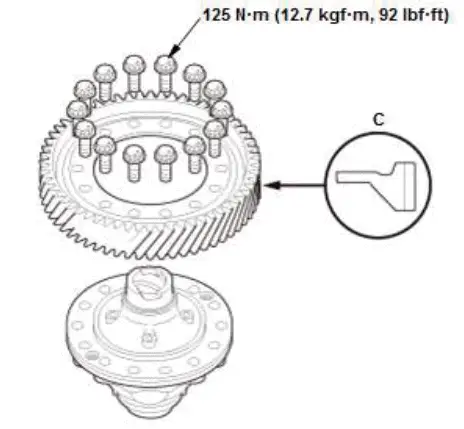

    Without AWD: Install the final driven gear (C) in the direction shown.

    NOTE: The final driven gear bolts have left-hand threads.

  2. Tighten the bolts to the specified torque in a crisscross pattern in at least two steps.

2. Carrier Bearing - Install
