Honda Pilot: VSA Off Switch Removal, Installation, and Test
Honda Pilot 2016-2022 (YF5/YF6) Service Manual / Remove, Install, Replace, Check info / VSA Off Switch Removal, Installation, and Test
Removal/Installation
1. Driver's Dashboard Lower Cover - Remove

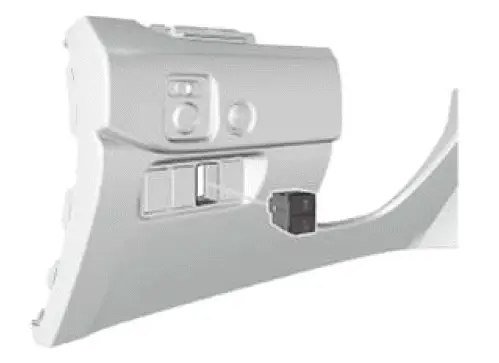

2. VSA Off Switch - Remove
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.
Test
1. VSA Off Switch - Test

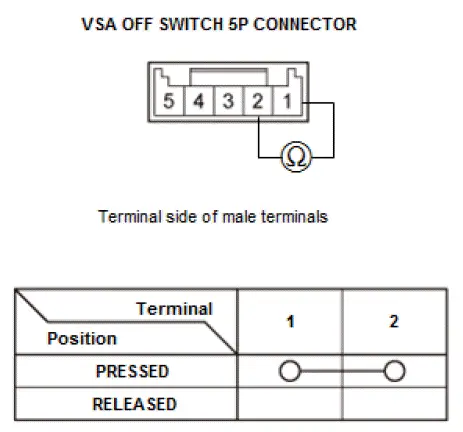

VSA OFF switch 5P Type

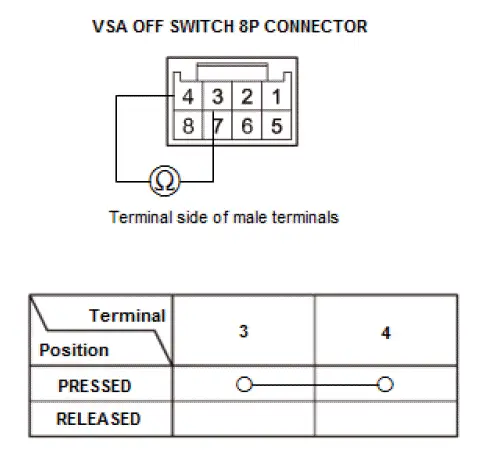

VSA OFF switch 8P Type
- On the switch side, check for continuity between the connector terminal in each switch position according to the table.
- If there is no continuity, replace the VSA OFF switch.
