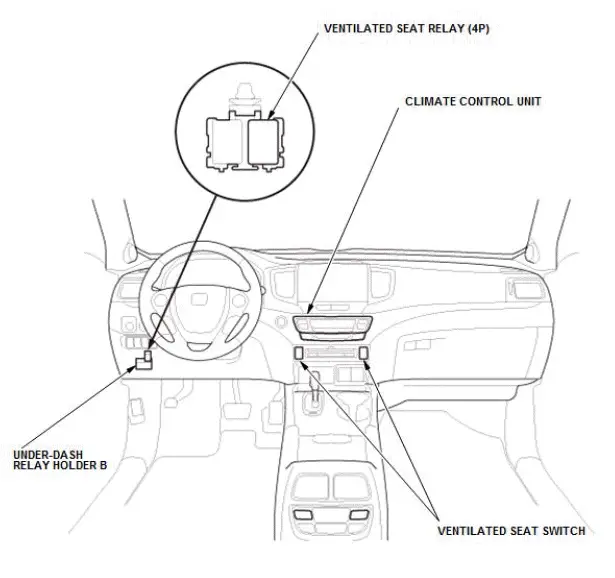

Honda Pilot: Ventilated Seats System Description - Components

Honda Pilot 2016-2022 (YF5/YF6) Service Manual / System Description Info / Ventilated Seats System Description - Components

Ventilated Seat Heater Switches

Each time the ventilated seat switch is pressed, it switches between High, Mid, and Low function of seat heater and ventilation.

Seat Blower Motors

The seat blower motors are controlled by pulse width modulation (PWM).

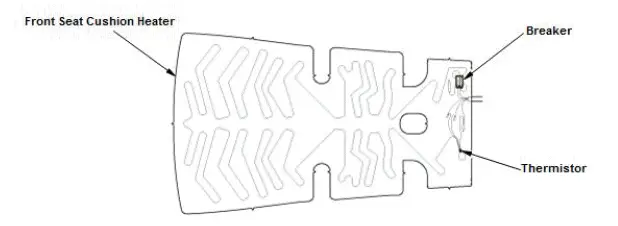

Thermistor and Breaker

Seat cushion heater has a thermistor and breaker. The thermistor and breaker are protecting an overheat and seat heater circuit.

Value of the thermistor is input to the control unit.

Honda Pilot. System Description Info

The seat heater temperature is controlled by breaker ON and OFF condition.

Honda Pilot. System Description Info

Ventilated Seats System Description - Control/Function

Heater Control

The seat heater control unit performs control to each set temperature (Low/Mid/High) based on the value of the built-in thermistor of the seat cushion heater. When the seat surface temperature has reached the set temperature, the control switches to pulse width modulation (PWM) control.

Blower Control

The ventilated seat control uses pulse width modulation (PWM) to control the blower motor to ensure that the set air volume (Low/Mid/High) is reached.

Automatic Operation

Based on the outside air temperature, A/C target temperature, and other factors, the climate control unit calculates the optimal heater or ventilated seat setting. The climate control unit sends this setting request to the ventilated seat control unit via B-CAN. When operating in auto mode or during remote engine start, the ventilated seat control unit will operate per the B-CAN setting request from the climate control unit.

Ventilated Seats System Description - Failsafe Function

Thermistor Circuit Open Failure

When the seat heater control unit detects a thermistor wire break, it stops the heater output and turns off the seat heater switch indicator.

Thermistor Circuit Short Failure

When the seat heater control unit detects a thermistor short-circuit, it stops the heater output and turns off the seat heater switch indicator.

Heater Circuit Current Error

When the seat heater control unit detects an abnormal current value in the heater circuit, it stops the heater output and turns off the seat heater switch indicator.

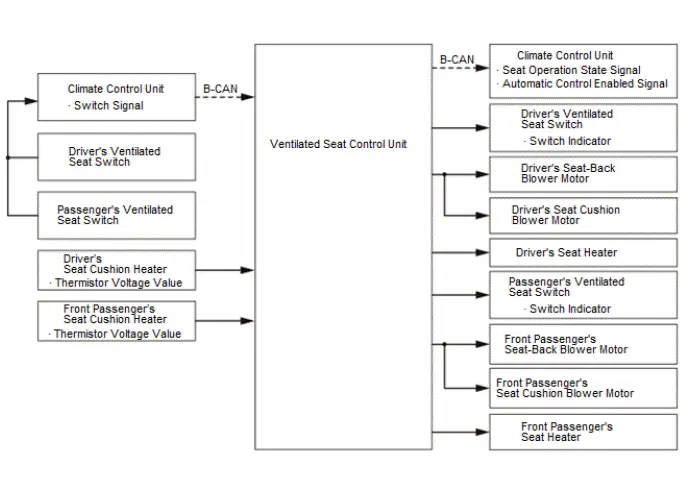

Ventilated Seats System Description - Overview

The ventilated seat can be controlled with switches to heat or ventilate the seat for comfort. Each time the seat ventilation switch or seat heat switch is pressed, it switches between High, Mid, and Low.

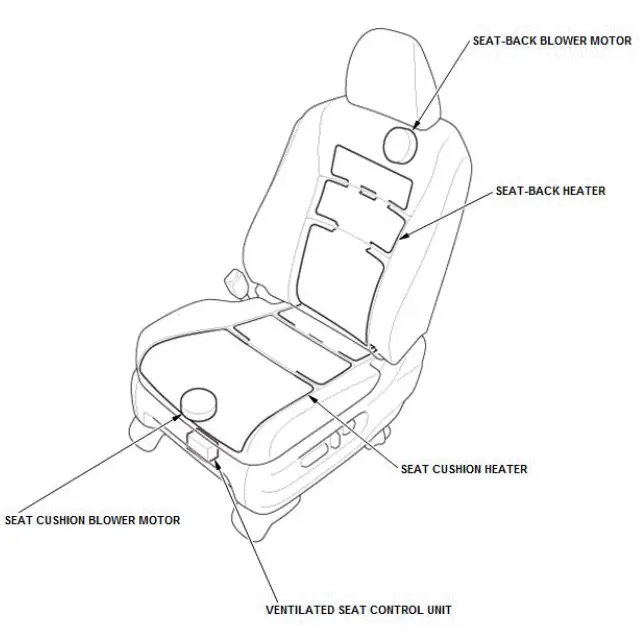

Driver's Seat

Honda Pilot. System Description Info

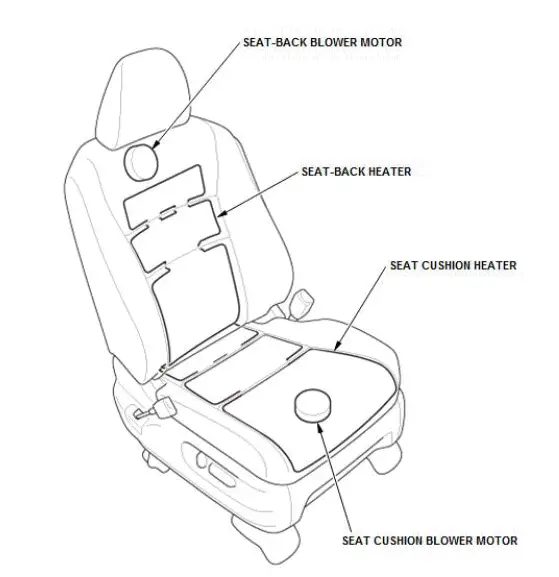

Front Passenger's Seat

Honda Pilot. System Description Info

Honda Pilot. System Description Info

Honda Pilot. System Description Info
