Honda Pilot: Third Row Seat Access Handle Removal and Installation

Removal/Installation

1. Second Row Seat - Remove

2. Second Row Seat Recline Cover - Remove

3. Second Row Seat Armrest - Remove

4. Second Row Seat Armrest Panel - Remove

5. Second Row Seat-Back Cover - Remove

6. Third Row Seat Access Handle - Remove

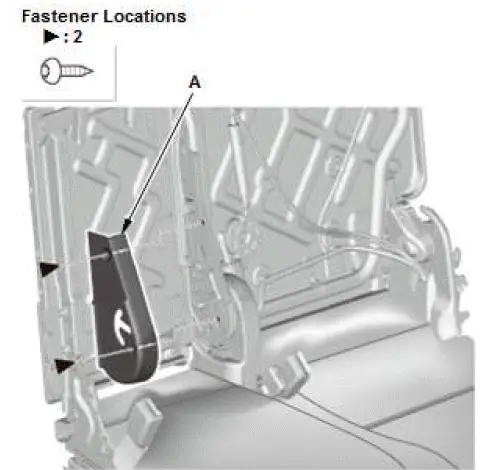

1. Remove the screws, using a TORX T20 bit.
2. Remove the recline upper center cover (A).

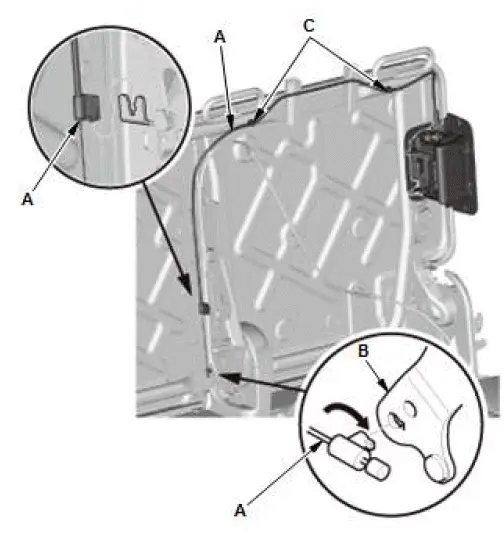

3. Disconnect the third row seat access handle cable (A) from the cable bracket (B).
4. Remove the clips (C).

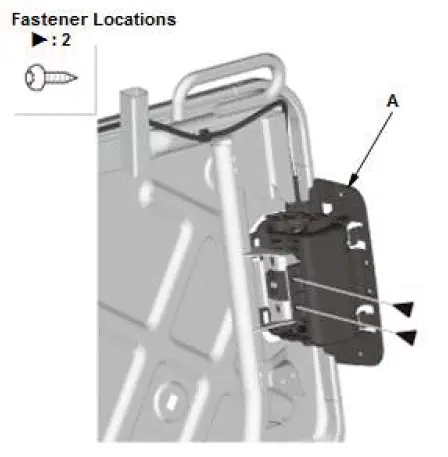

5. Remove the screws, using a TORX T20 bit.
6. Remove the third row seat access handle (A).

7. All Removed Parts - Install

1. Install the parts in the reverse order of removal.
