Honda Pilot: SRS Unit Removal and Installation

Removal/Installation

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

1. 12 Volt Battery Terminal - Disconnect

NOTE: Wait at least 3 minutes before starting work.

2. Center Console Side Cover - Remove

3. SRS Unit - Remove

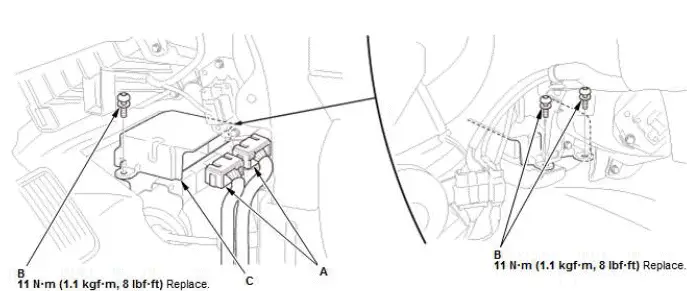

1. Disconnect the connectors (A).

NOTE: The SRS unit connectors have lever locks. Release the locks before disconnecting the connectors.

2. Remove the bolts (B).
3. Remove the SRS unit (C).

4. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

NOTE:

• During installation, install the new bolts to the specified torque.
• Before installing the center console, make sure the SRS indicator works normally.
• Make sure the SRS unit has the latest software. If it does not have the latest, update the software in the SRS unit.

5. SRS Operation - Confirm

1. Do the 12 volt battery terminal reconnection procedure, turn the vehicle to the ON mode, and check that the SRS indicator comes on for about 6 seconds and then goes off.
