Honda Pilot: Second Row Seat Cushion Cover Removal and Installation

Removal/Installation

1. Second Row Seat - Remove

2. Second Row Seat Recline Cover - Remove

3. Second Row Seat Cushion Cover/Pad - Remove

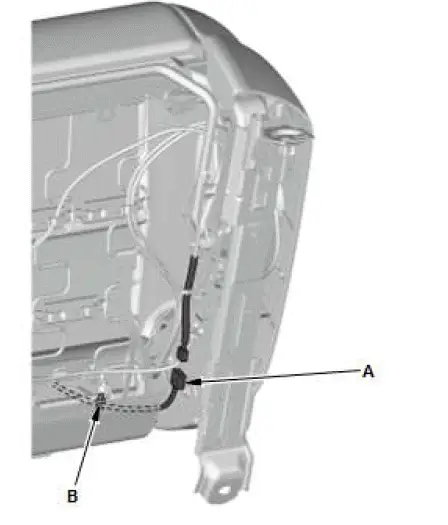

1. Disconnect the connector (A), and then remove the harness clip (B). (with seat heater)

Left seat

Right seat

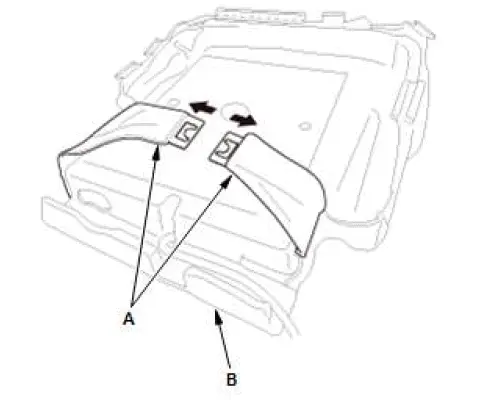

2. From the back of the seat cushion, release the hook strips (A).
3. Remove the seat cushion cover/pad (B).

4. Second Row Seat Cushion Cover - Remove

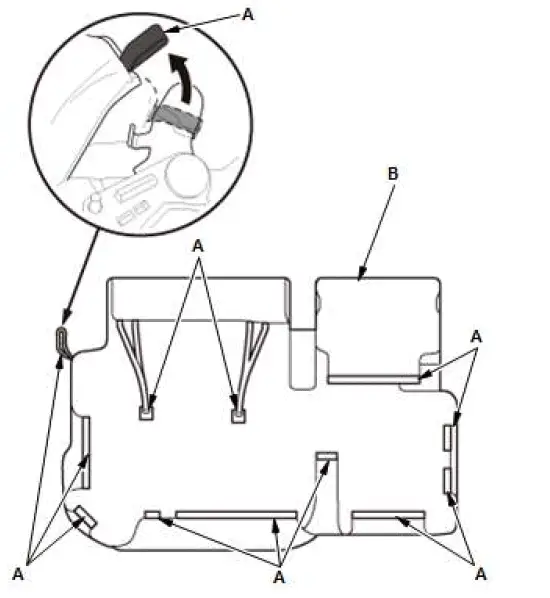

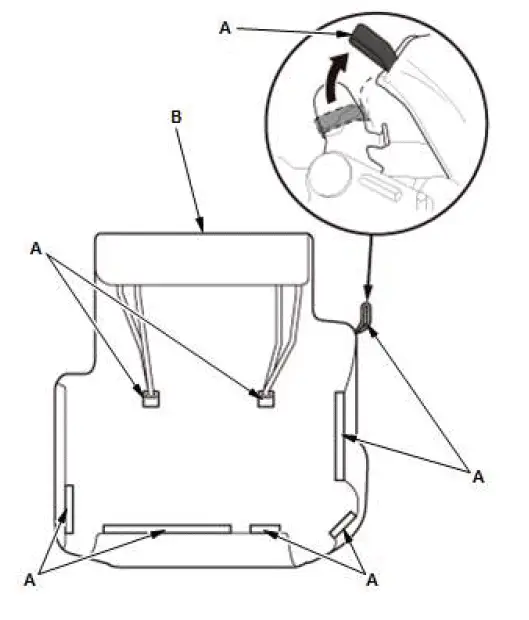

1. Remove the band (A) of the second seat cushion cover (B).

Left seat

Right seat

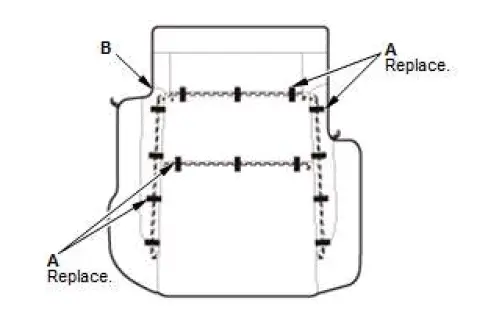

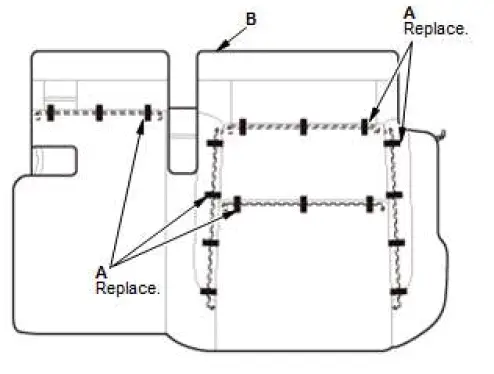

2. Remove the upholstery rings (A), and then remove the seat cushion cover (B).

5. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

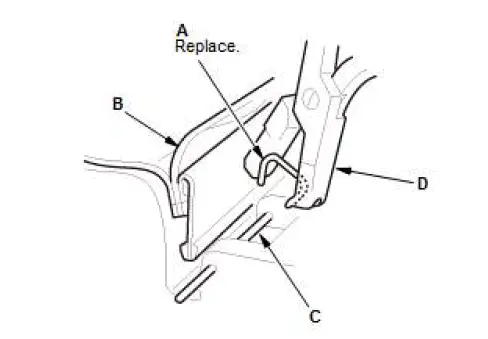

   NOTE: Replace all of the upholstery rings (A) fastening the seat cushion cover (B) to the pad wires (C) with new ones using commercially available upholstery ring pliers (D).
