Honda Pilot: Roof Molding Removal and Installation
Honda Pilot 2016-2022 (YF5/YF6) Service Manual / Remove, Install, Replace, Check info / Roof Molding Removal and Installation
Removal/Installation
With Roof Rail
1. Roof Rail - Remove
2. Roof Molding - Remove

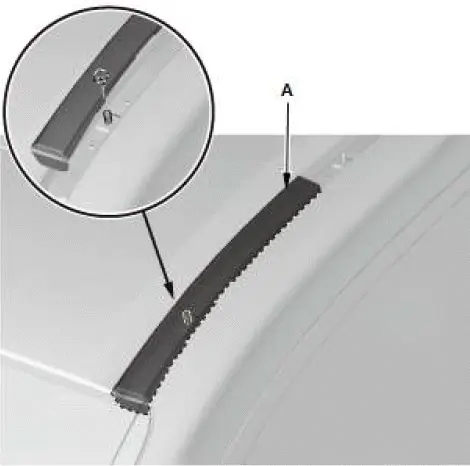

- Remove the roof molding (A).
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.
Without Roof Rail

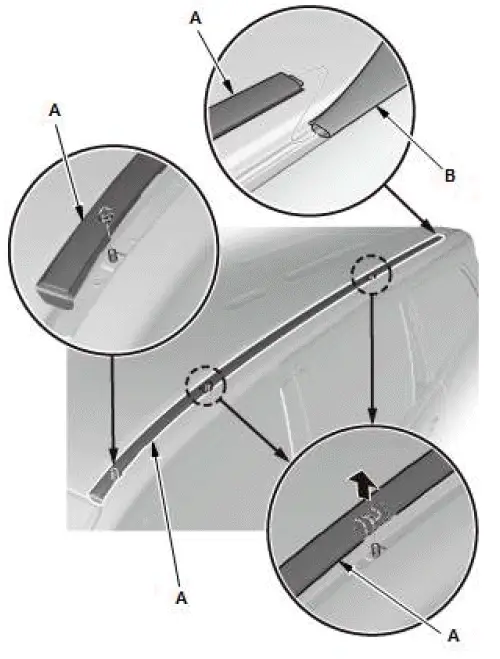

1. Roof Molding - Remove
- Remove the roof molding (A).
NOTE: Remove the rear end of the roof molding from the tailgate hinge cover (B).
- NOTE: Remove the rear end of the roof molding from the tailgate hinge cover (B).
2. All Removed Parts - Install
- Install the parts in the reverse order of removal.
