Honda Pilot: Rocker Arm Oil Pressure Switch A (Bank 1) and Rocker Arm Oil Pressure Switch B (Bank 1) Removal and Installation

Honda Pilot 2016-2022 (YF5/YF6) Service Manual / Remove, Install, Replace, Check info / Rocker Arm Oil Pressure Switch A (Bank 1) and Rocker Arm Oil Pressure Switch B (Bank 1) Removal and Installation

Removal/Installation

1. Engine Cover - Remove

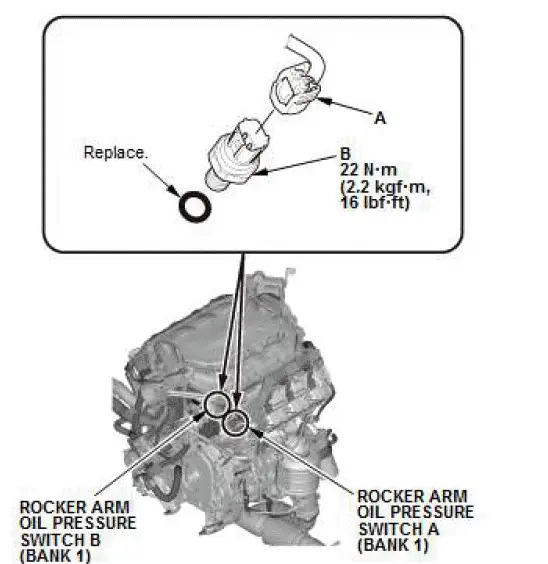

2. Rocker Arm Oil Pressure Switch - Remove

Honda Pilot. Remove, Install, Replace, Check info

  1. Disconnect the connector (A).
  2. Remove the rocker arm oil pressure switch (B).

3. All Removed Parts - Install

  1. Install the parts in the reverse order of removal with a new O-ring.

Rocker Arm Oil Pressure Switch A (Bank 2) Removal and Installation

Removal/Installation

1. Engine Cover - Remove

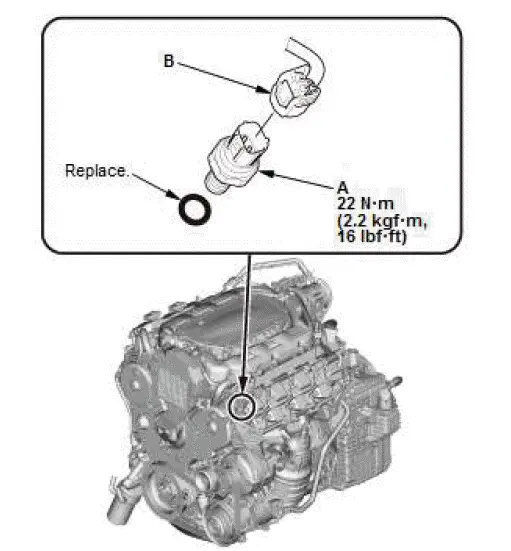

2. Rocker Arm Oil Pressure Switch A (Bank 2) - Remove

Honda Pilot. Remove, Install, Replace, Check info

  1. Disconnect the connector (B).
  2. Remove rocker arm oil pressure switch A (Bank 2).

3. All Removed Parts - Install

  1. Install the parts in the reverse order of removal with a new O-ring.
