Honda Pilot: Power Tailgate Inside Switch Removal and Installation

Removal/Installation

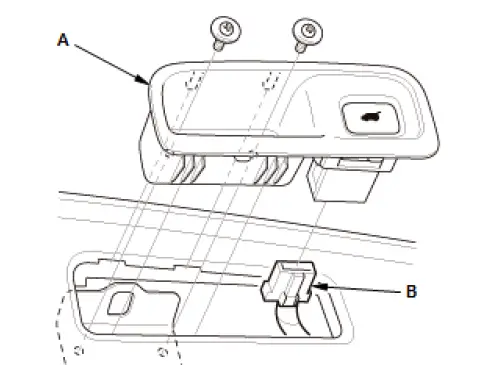

1. Power Tailgate Inside Switch Panel - Remove

1. Remove the power tailgate inside switch panel (A).
2. Disconnect the connector (B).

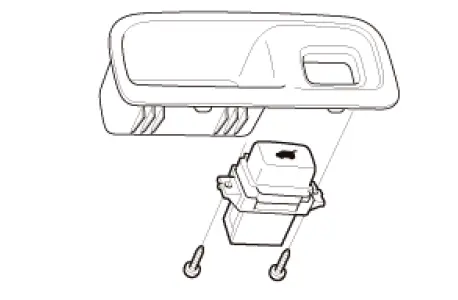

2. Power Tailgate Inside Switch - Remove

3. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

Power Tailgate Pinch Sensor Removal and Installation

Removal and Installation

1. Tailgate Lower Trim Panel - Remove

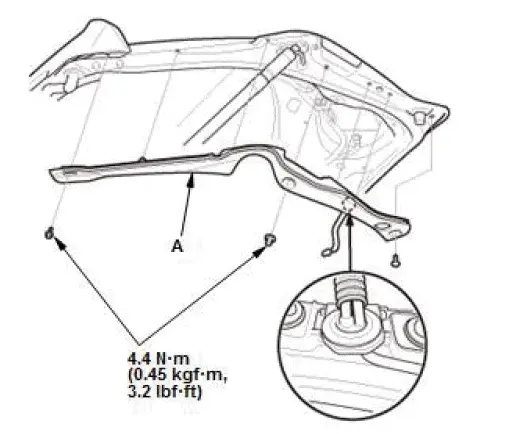

2. Power Tailgate Pinch Sensor - Remove

1. Disconnect the connector.
2. Remove the power tailgate pinch sensor (A).

3. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

Power Window Master Switch Removal and Installation

Removal/Installation

NOTE: If the switch is replaced, reset the power window control unit. If the original switch is installed, confirm that the power window works properly.

1. Driver's Door Armrest - Remove

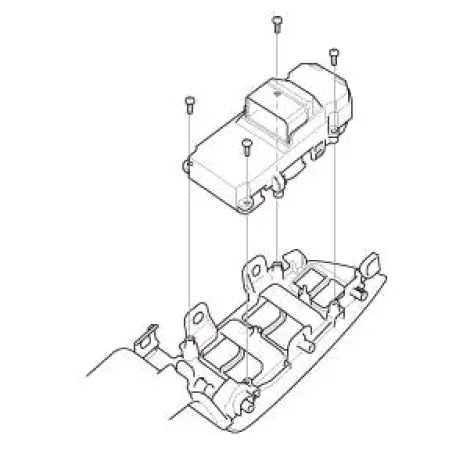

2. Power Window Master Switch - Remove

3. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

4. Power Window Control Unit - Reset
