Removal/Installation
1. Front Door Panel - Remove
2. Power Mirror - Remove

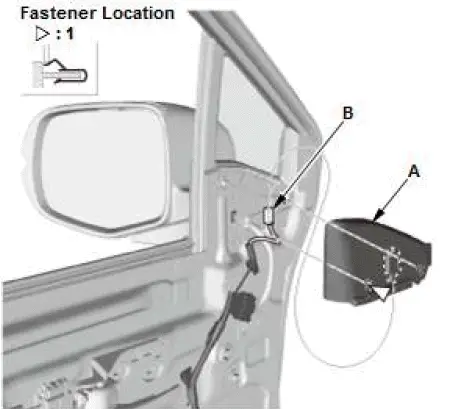

- Remove the mirror mount cover (A).
- Disconnect the connector (B). (for some models)

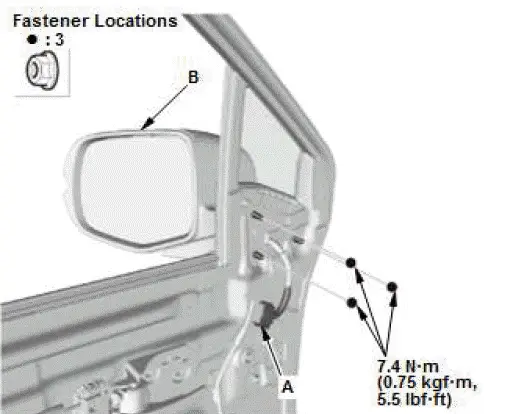

- Disconnect the connector (A).
- While holding the power mirror (B), remove the nuts.

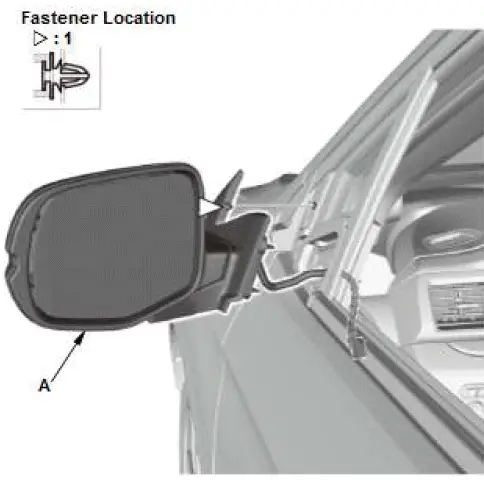

- Remove the power mirror (A).
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.
4. LaneWatch Camera - Aim
