Honda Pilot: Media Hub Unit Connector for Inputs and Outputs
Connector Index

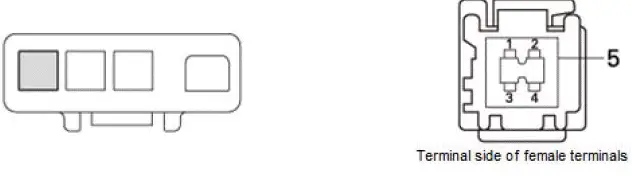

Media Hub Unit Connector A (4P)

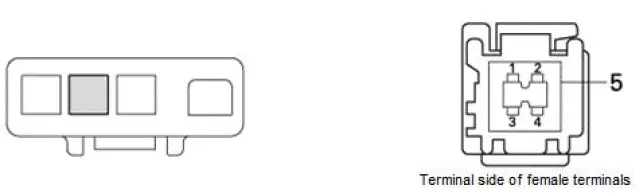

Media Hub Unit Connector B (5P)

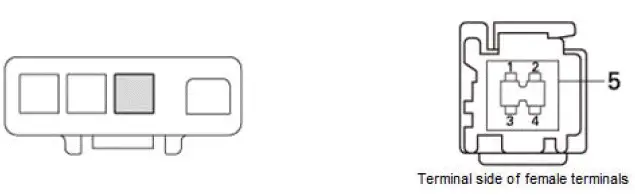

Media Hub Unit Connector C (5P)
Media Hub Unit Connector D (5P)
MEDIA HUB UNIT CONNECTOR A (4P)
*1: With auto idle stop system
*2: Without auto idle stop system
MEDIA HUB UNIT CONNECTOR B (5P)
MEDIA HUB UNIT CONNECTOR C (5P)
MEDIA HUB UNIT CONNECTOR D (5P)

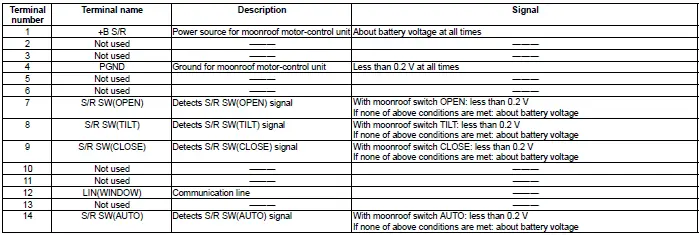

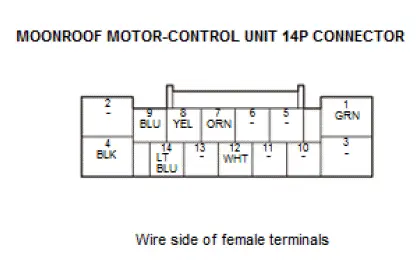

Moonroof Motor-Control Unit Connector for Inputs and Outputs
Multipurpose Camera Unit Connector for Inputs and Outputs

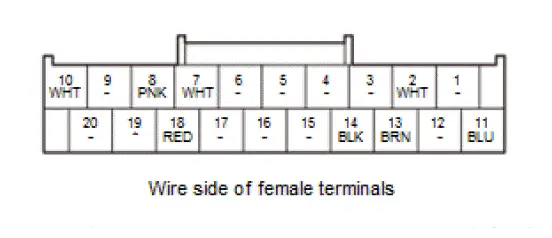

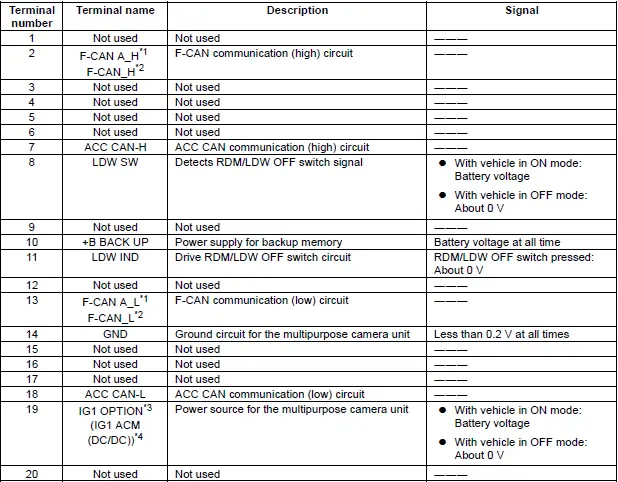

Multipurpose Camera Unit 20P Connector Inputs and Outputs
*1: 9-speed A/T
*2: 6-speed A/T
*3: Without auto idle stop system
*4: With auto idle stop system

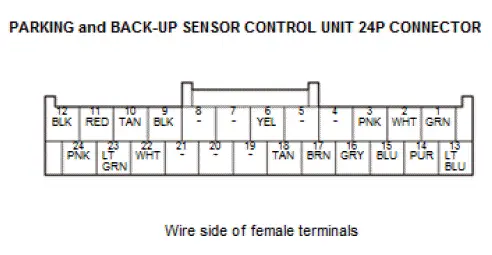

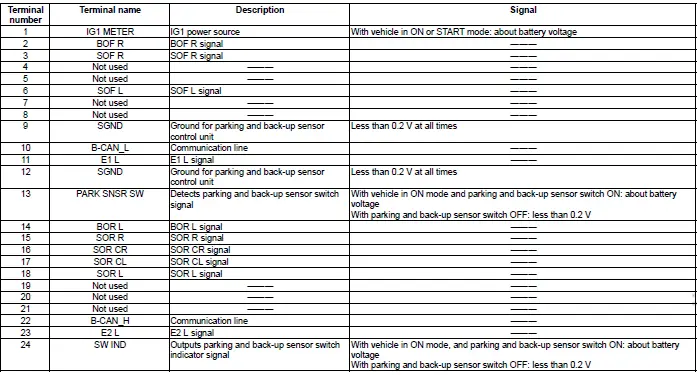

Parking and Back-Up Sensor Control Unit Connector for Inputs and Outputs
Honda Pilot 2016-2022 (YF5/YF6) Service Manual
