Honda Pilot: Knock Sensor 1 (Bank 1) and Knock Sensor 2 (Bank 2) Removal and Installation

Removal/Installation

1. Intake Manifold and Intake Manifold Base - Remove

2. Fuel Rail - Remove

3. Knock Sensor - Remove

1. Disconnect the connector (A).
2. Remove the knock sensor (B).

4. All Removed Parts - Install

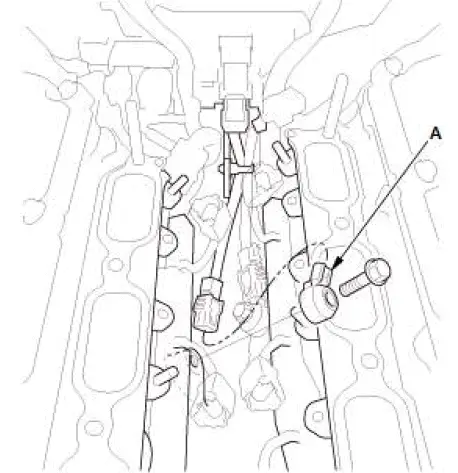

Knock Sensor 2 (Bank 2)

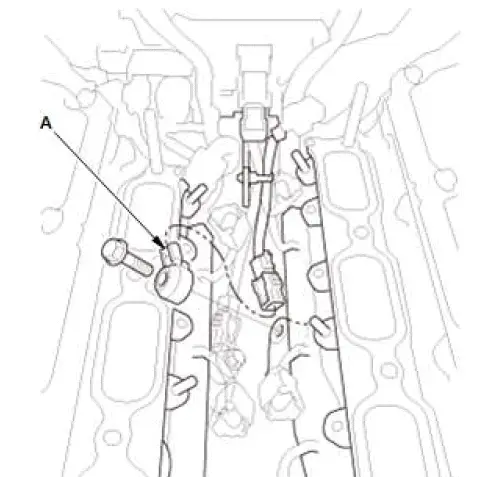

Knock Sensor 1 (Bank 1)

1. Install the parts in the reverse order of removal.

   NOTE: Make sure the direction of the sensor connector (A) is as shown.
