Honda Pilot: Keyless Access LF Antenna (Front Interior) Removal and Installation
Honda Pilot 2016-2022 (YF5/YF6) Service Manual / Remove, Install, Replace, Check info / Keyless Access LF Antenna (Front Interior) Removal and Installation
Removal/Installation
1. Front Center Console - Remove
2. Rear Console Heater Duct - Remove

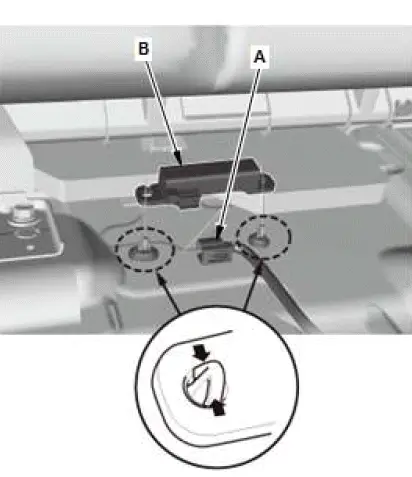

3. Front Interior LF Antenna - Remove
- Disconnect the connector (A).
- Remove the front interior LF antenna (B).
4. All Removed Parts - Install
- Install the parts in the reverse order of removal.
Keyless Access LF Antenna (Rear Interior) Removal and Installation
Removal/Installation
1. Third Row Seat Cushion - Remove

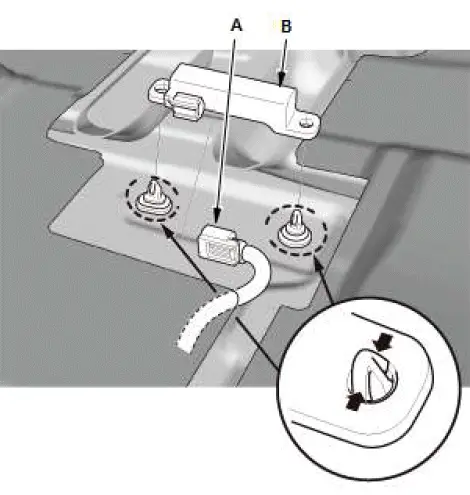

2. Rear Interior LF Antenna - Remove
- Disconnect the connector (A).
- Remove the rear interior LF antenna (B).
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.
