Honda Pilot: Input Shaft (Mainshaft) Speed Sensor Removal and Installation

Removal/Installation

1. Front Bulkhead Cover - Remove

2. Air Intake Tube - Remove

3. Air Cleaner - Remove

4. 12 Volt Battery - Remove

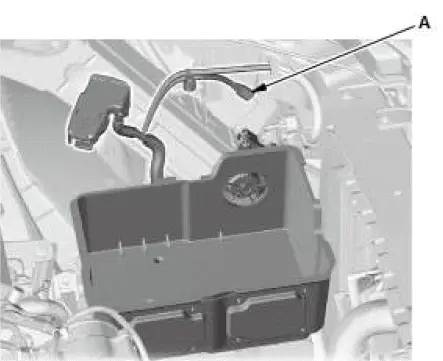

5. 12 Volt Battery Box - Remove

1. Disconnect the connector (A).

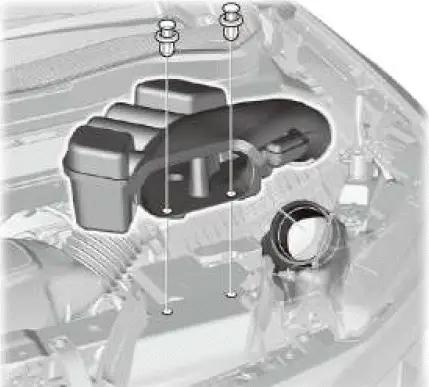

6. 12 Volt Battery Duct - Remove

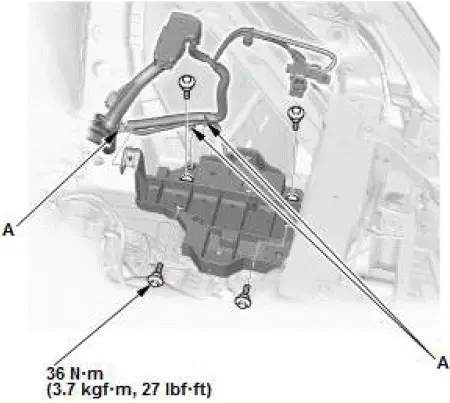

7. Battery Base - Remove

1. Remove the harness clamps (A).

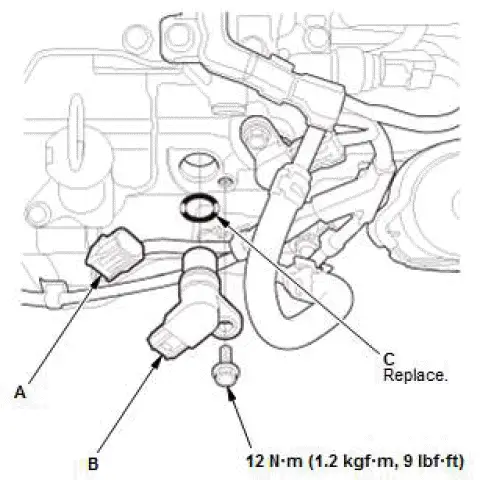

8. Input Shaft (Mainshaft) Speed Sensor - Remove

1. Disconnect the connector (A).
2. Remove the input shaft (mainshaft) speed sensor (B) with the O-ring (C).

9. All Removed Parts - Install

1. Install the parts in the reverse order of removal.
