Honda Pilot: Fuel Cap Adapter Removal and Installation

Removal and Installation

1. Left Rear Side Trim Panel - Remove

2. Fuel Cap Adapter - Remove

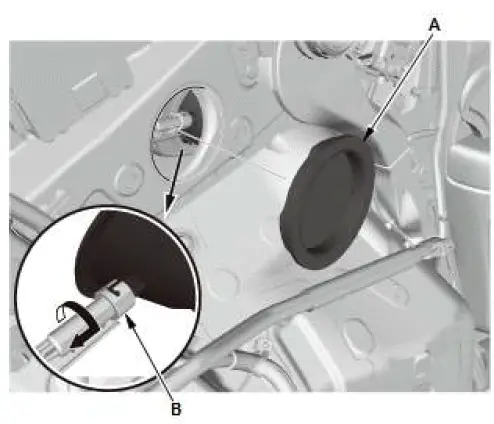

1. Remove the maintenance hall cap (A) from the body.
2. Disconnect the fuel fill door opener (B).

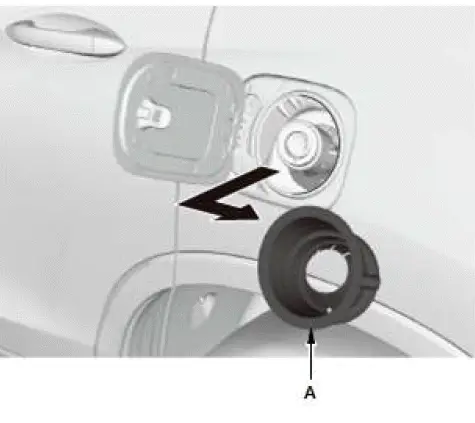

3. Remove the fuel cap adapter (A).

3. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

Fuel Fill Door Opener Solenoid Removal, Installation, and Test

Removal/Installation

1. Left Rear Side Trim Panel - Remove

2. Fuel Fill Door Opener Solenoid - Remove

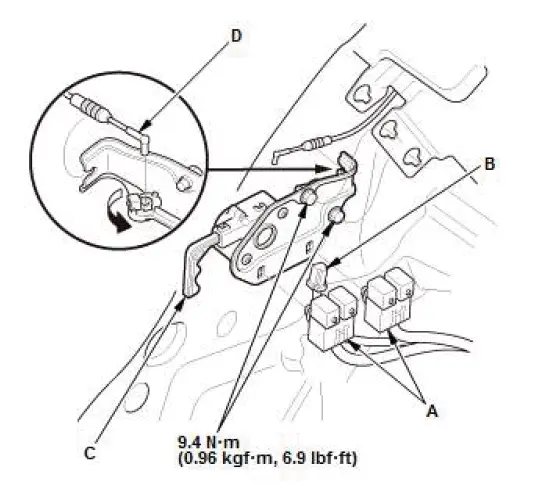

1. Remove the left rear relay holders (A).
2. Disconnect the connector (B).
3. Loosen the bolts.
4. Remove the fuel fill door opener solenoid (C).
5. Remove the cable (D).

3. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

Test

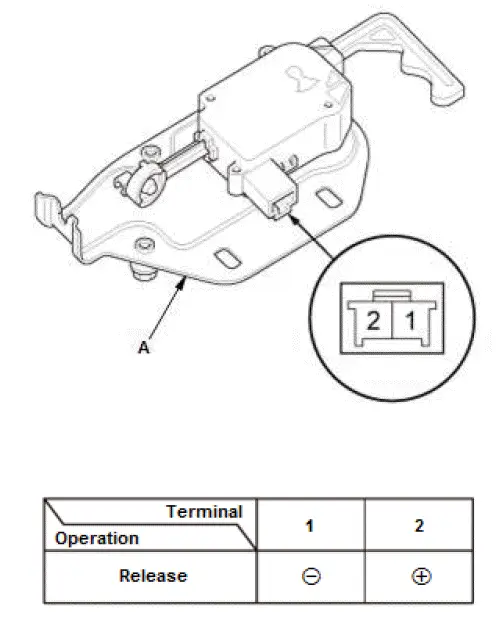

1. Fuel Fill Door Opener Solenoid - Test
