Honda Pilot: Front Seat Removal and Installation

Removal/Installation

NOTE: SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

1. 12 Volt Battery Terminal - Disconnect

NOTE: Wait at least 3 minutes before starting work.

2. Front Seat Belt Lower Anchor Connector - Remove (Passenger's Seat)

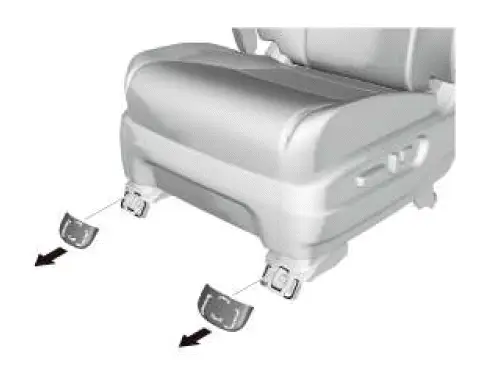

3. Front Seat Track End Covers - Remove

Front side

Rear side

4. Front Seat Mounting Bolts - Remove

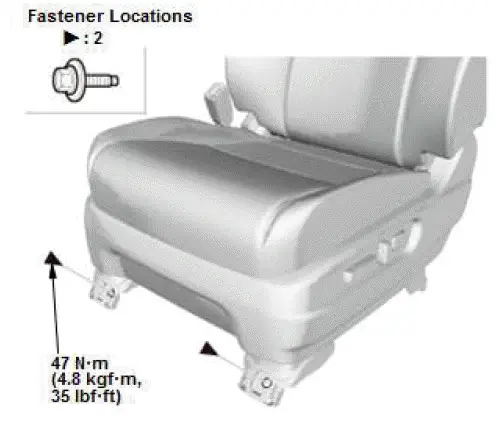

Front side

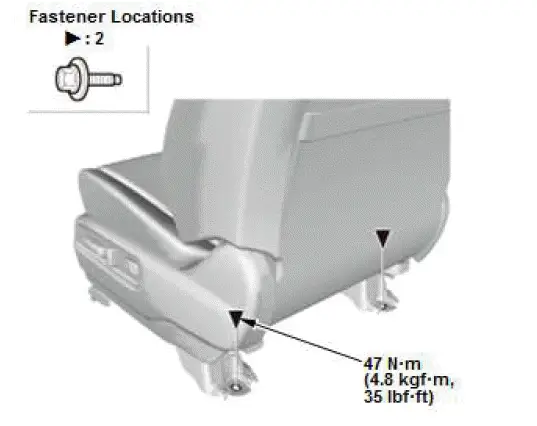

Rear side

5. Front Seat - Remove

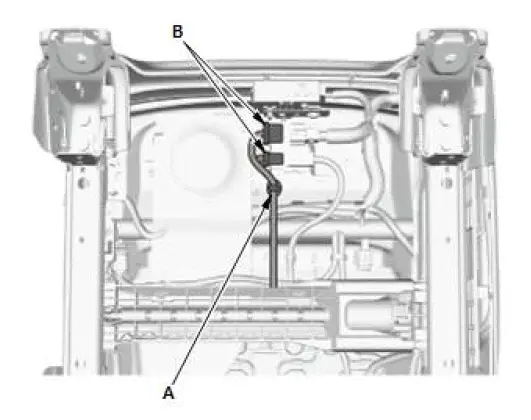

Driver's seat

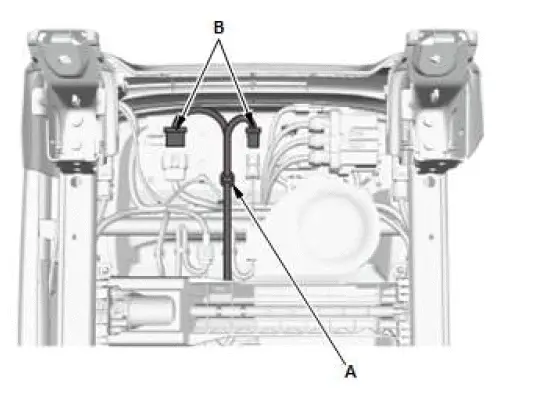

Passenger's seat

1. From under the seat cushion, remove the harness clip (A).
2. Disconnect the connectors (B).
3. With the help of an assistant, carefully remove the front seat through the front door opening.

6. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

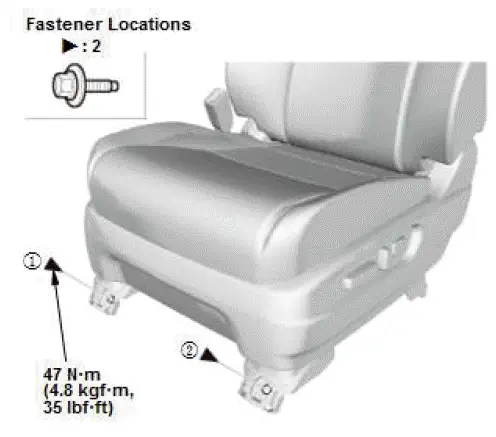

Front side

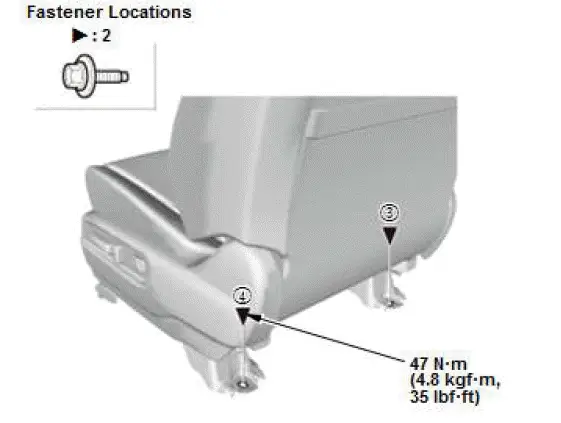

Rear side

NOTE:

• Tighten the bolts by hand first, and then tighten them to the specified torque.
• Tighten the seat mounting bolts to the specified torque in the sequence shown. Slide the seat all the way back and tighten 1 and 2, and then slide it forward and tighten 3 and 4.
