Honda Pilot: DVD Player Unit Connector for Inputs and Outputs
Honda Pilot 2016-2022 (YF5/YF6) Service Manual / Connector input and output Info / DVD Player Unit Connector for Inputs and Outputs
Connector Index
DVD Player Unit Connector A (24P)
DVD Player Unit Connector B (2P)

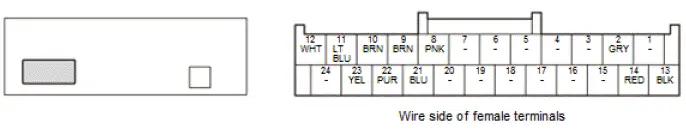

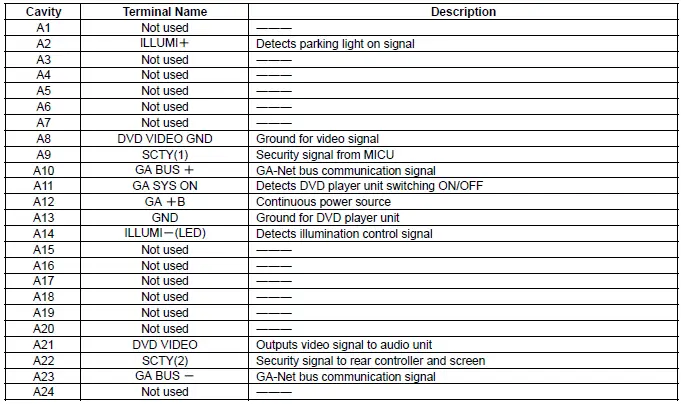

DVD PLAYER UNIT CONNECTOR A (24P)

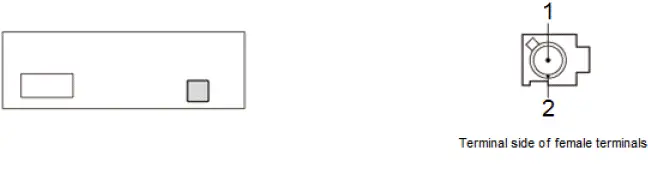

DVD PLAYER UNIT CONNECTOR B (2P)
Electrical Compass Unit Connector for Inputs and Outputs

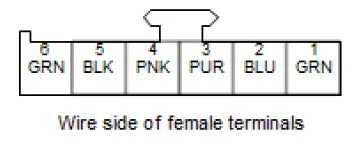

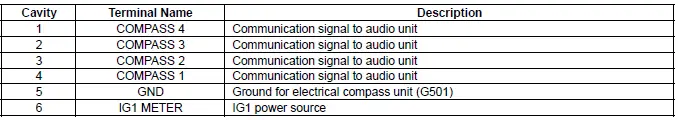

ELECTRICAL COMPASS UNIT 6P CONNECTOR
Engine Mount Control Unit Connector for Inputs and Outputs

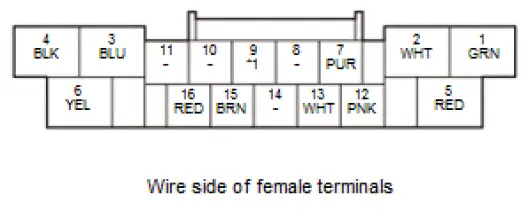

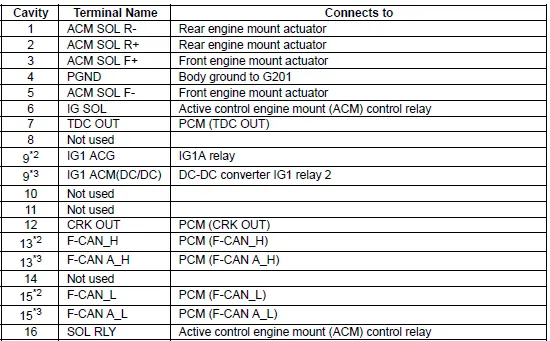

Engine Mount Control Unit 16P Connector
*1: GRN (Without auto idle stop system), LT BLU (With auto idle stop system)
*2: Without auto idle stop system
*3: With auto idle stop system
