Honda Pilot: Dashboard Side Lid Removal and Installation

Removal/Installation

1. Dashboard Side Lid - Remove

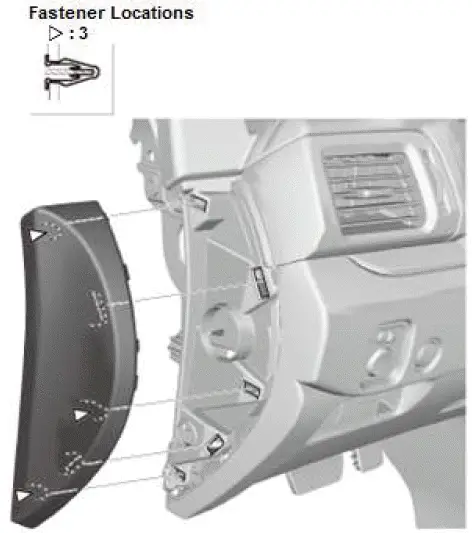

Driver's Side

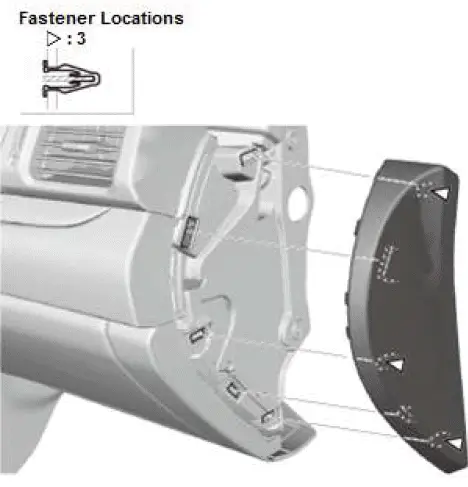

Passenger's Side

2. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

Dashboard Vent Removal and Installation

Removal and Installation

Driver's Side

1. Dashboard Side Lid - Remove (Driver's Side)

2. Driver's Dashboard Lower Cover - Remove

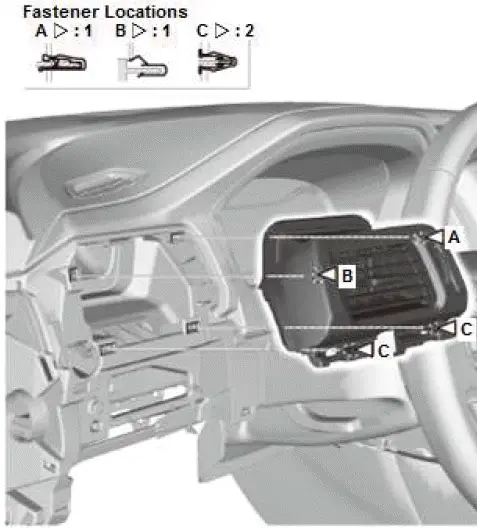

3. Driver's Dashboard Vent - Remove

4. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

Passenger's Side

1. Both Dashboard Side Lid - Remove

2. Driver's Dashboard Lower Cover - Remove

3. Passenger's Dashboard Trim Panel - Remove

4. Dashboard Center Panel - Remove

5. Dashboard Center Middle Trim - Remove

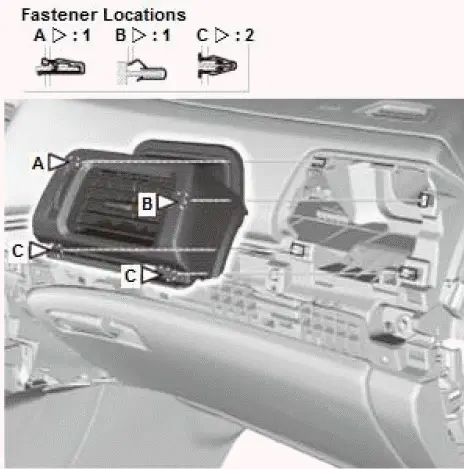

6. Passenger's Dashboard Vent - Remove

7. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

Center

1. Both Dashboard Side Lid - Remove

2. Driver's Dashboard Lower Cover - Remove

3. Passenger's Dashboard Trim Panel - Remove

4. Dashboard Center Panel - Remove

5. Dashboard Center Middle Trim - Remove

6. Audio-Navigation Unit Assembly / Audio Unit Assembly - Remove

1. Remove either of the following items:
   • Audio-navigation unit
   • Audio unit

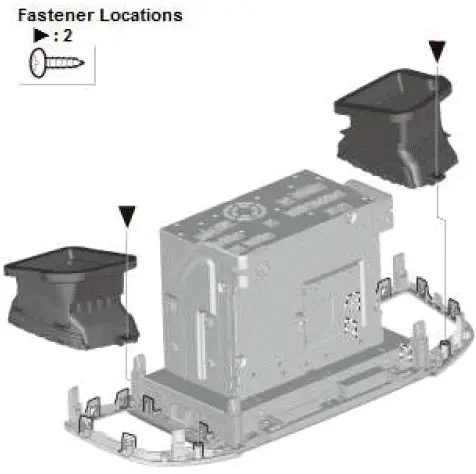

7. Dashboard Center Vent - Remove

1. Remove the dashboard center vents.

8. Audio Panel Trim - Remove (For Some Models)

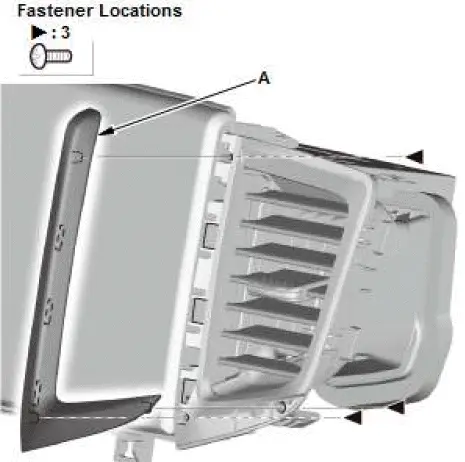

1. If necessary, remove the audio panel trim (A).

9. All Removed Parts - Install

Dashboard Removal and InstallationDashboard/Steering Hanger Beam Removal and Installation
