Honda Pilot: Air Mix Control Motor/Mode Control Motor/Recirculation Control Motor Removal and Installation

Honda Pilot 2016-2022 (YF5/YF6) Service Manual / Remove, Install, Replace, Check info / Air Mix Control Motor/Mode Control Motor/Recirculation Control Motor Removal and Installation

Removal/Installation

SRS components are located near the mode control motor and the recirculation control motor. Review the SRS component locations and the precautions and procedures before doing repairs or service.

NOTE: Set the vent mode to the dashboard vents ( )before removing the mode control motor A.

1. Part Removal For Motor Access

Honda Pilot. Remove, Install, Replace, Check info

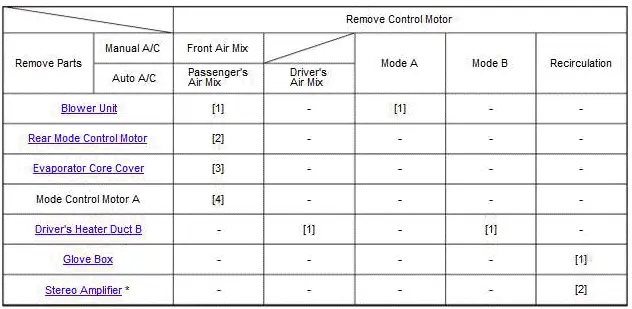

Note: Numbers in table indicate parts removal order.

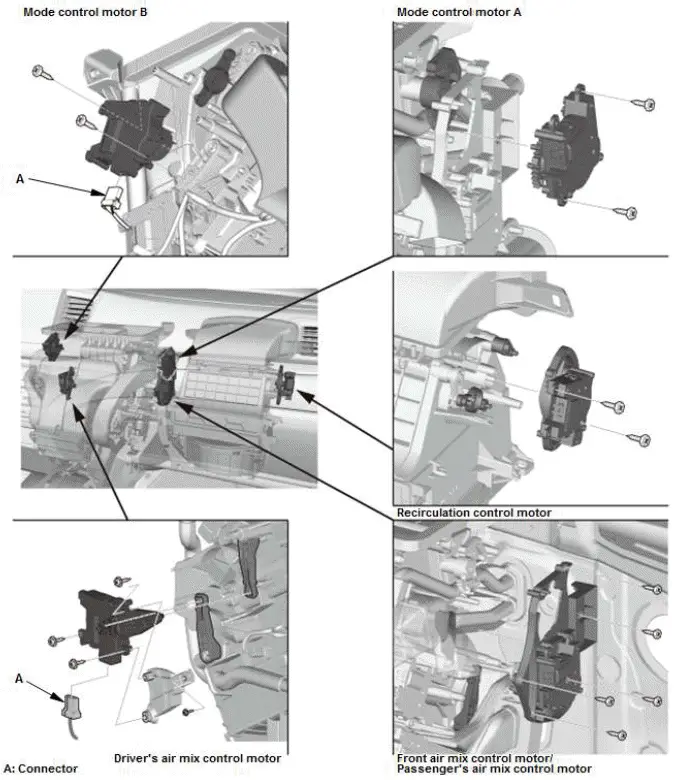

2. Motors Location

Honda Pilot. Remove, Install, Replace, Check info

3. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

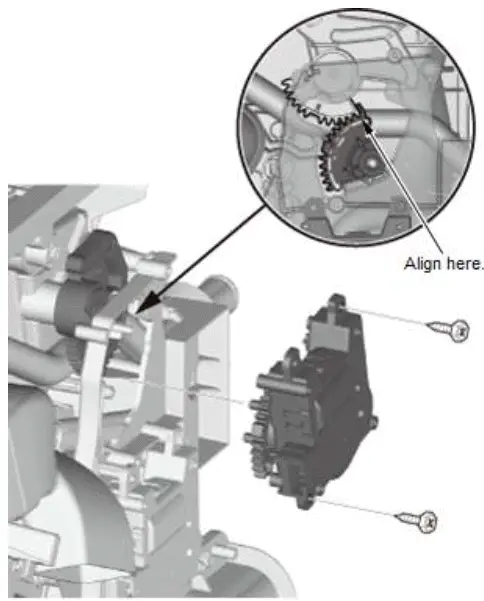

Mode control motor A

Honda Pilot. Remove, Install, Replace, Check info
