Honda Pilot: A/T Oil Seal Replacement
Honda Pilot 2016-2022 (YF5/YF6) Service Manual / Remove, Install, Replace, Check info / A/T Oil Seal Replacement
Replacement
NOTE: Unless otherwise indicated, illustrations used in the procedure are for AWD.
Control Shaft Oil Seal

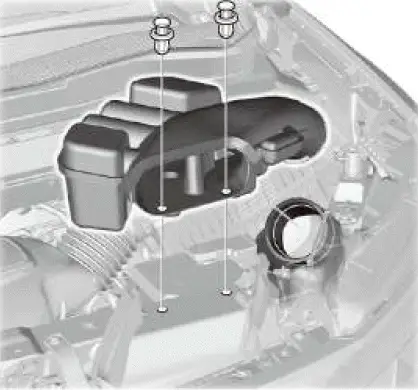

1. Front Bulkhead Cover - Remove

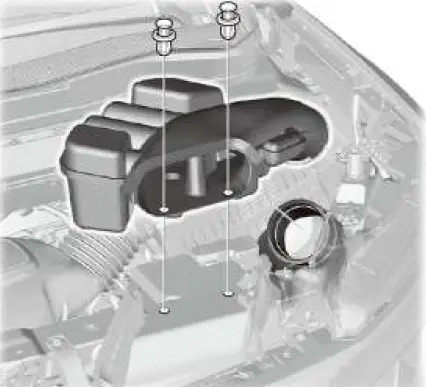

2. Air Intake Tube - Remove

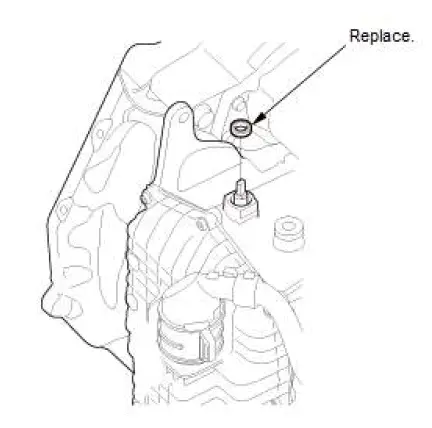

3. Control Shaft Oil Seal - Remove

4. Control Shaft Oil Seal - Install

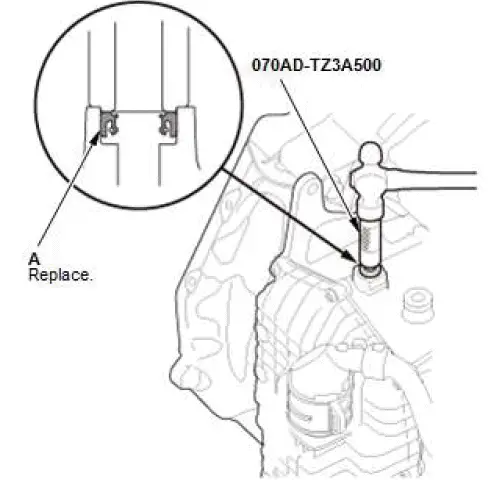

- Install the control shaft oil seal (A) using oil seal driver E
until the oil seal driver has been fully seated.
5. Air Intake Tube - Install

6. Front Bulkhead Cover - Install
Torque Converter Oil Seal
1. Transmission Assembly - Remove

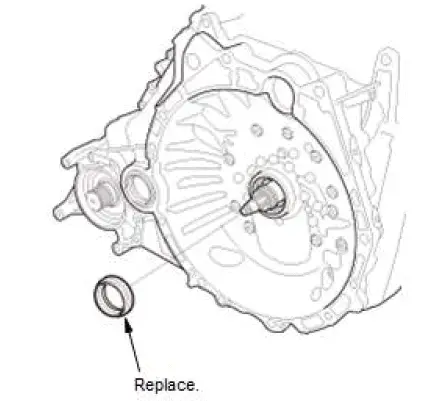

2. Torque Converter Oil Seal - Remove

3. Torque Converter Oil Seal - Install

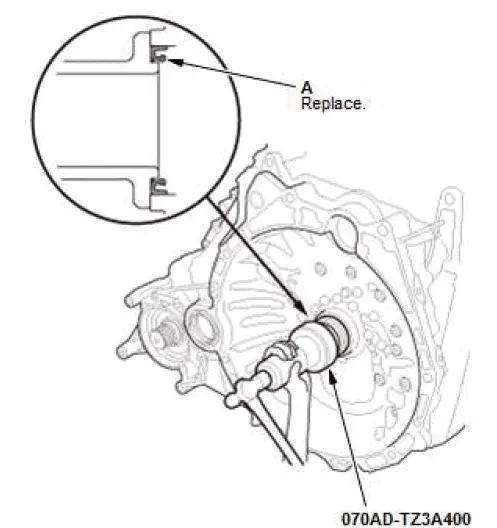

- Install the torque converter oil seal (A) using oil seal driver
D until the oil seal driver has been fully seated.
4. Transmission Assembly - Install
Differential Oil Seal (Transmission Housing Side)
1. Left Driveshaft Inboard Joint - Disconnect
NOTE: Secure the driveshaft to the body with a nylon strap.

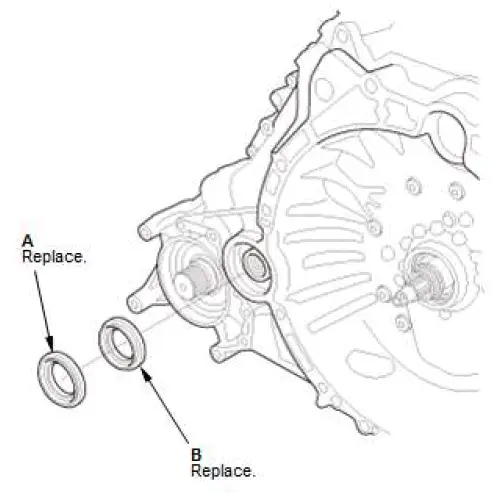

2. Differential Oil Seal (Transmission Housing Side) - Remove

- Remove the differential outer oil seal (A).
- Remove the differential inner oil seal (B).
3. Differential Oil Seal (Transmission Housing Side) - Install

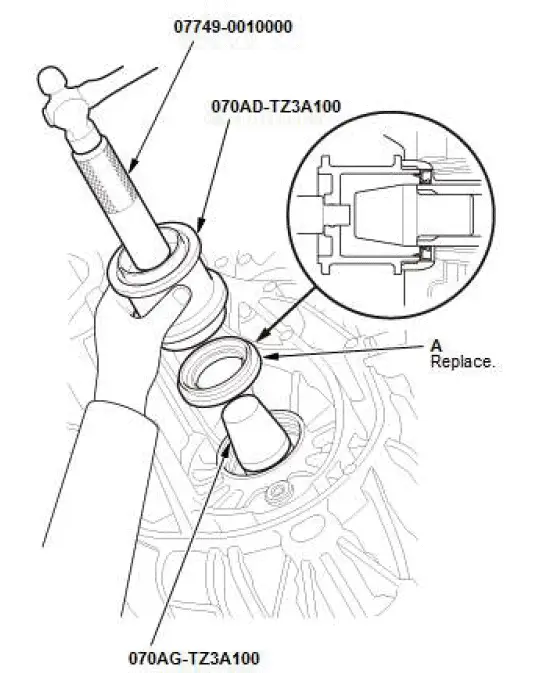

- Install oil seal installer guide A.
- Install the differential inner oil seal (A) using the 15 x 135L
driver handle and oil seal driver A (the small diameter side)
until the oil seal driver has been fully seated.
- Remove oil seal installer guide A.

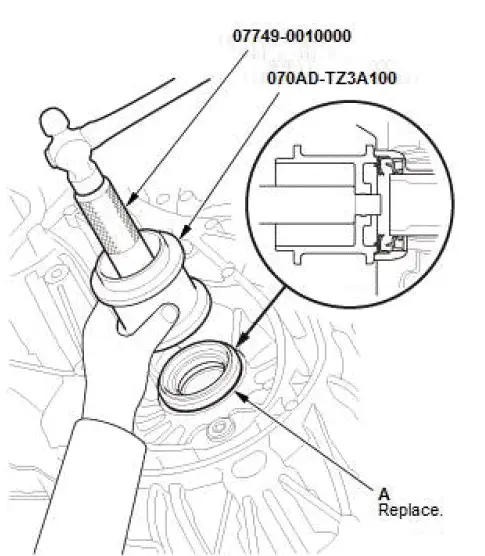

- Turn oil seal driver A upside down, and install the
differential outer oil seal (A) using the 15 x 135L driver
handle and oil seal driver A (the major diameter side) until
the oil seal driver has been fully seated.
4. Left Driveshaft Inboard Joint - Connect
Differential Oil Seal (Torque Converter Housing Side)
1. Transmission Assembly - Remove

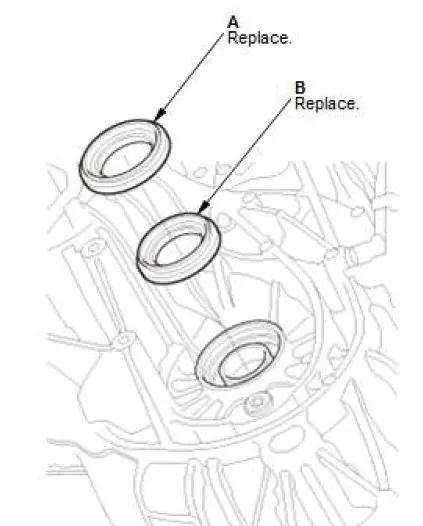

2. Differential Oil Seal (Torque Converter Housing Side) - Remove

- Remove the differential outer oil seal (A).
- Remove the differential inner oil seal (B).
3. Differential Oil Seal (Torque Converter Housing Side) - Install

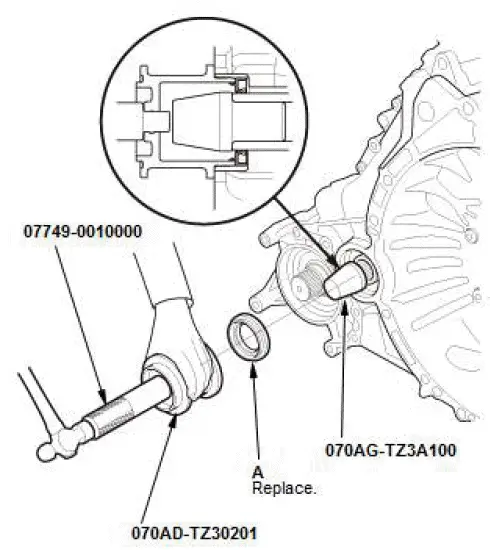

- Install oil seal installer guide A.
- Install the differential inner oil seal (A) using the 15 x 135L
driver handle and oil seal driver B (the major diameter side)
until the oil seal driver has been fully seated.
- Remove oil seal installer guide A.

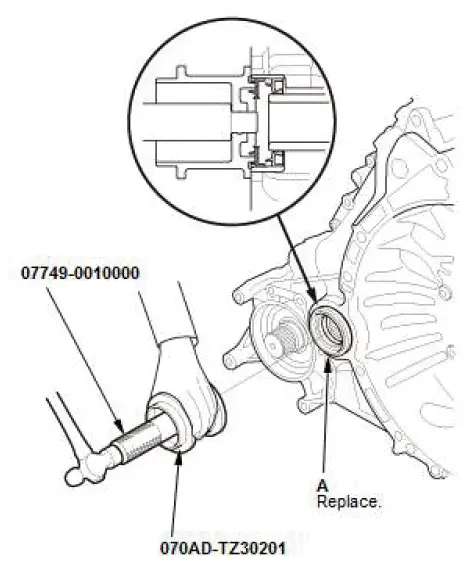

- Turn oil seal driver B upside down, and install the
differential outer oil seal (A) using the 15 x 135L driver
handle and oil seal driver B (the small diameter side) until
the oil seal driver has been fully seated.
4. Transmission Assembly - Install

1. ATF - Drain
2. Transfer Assembly - Remove

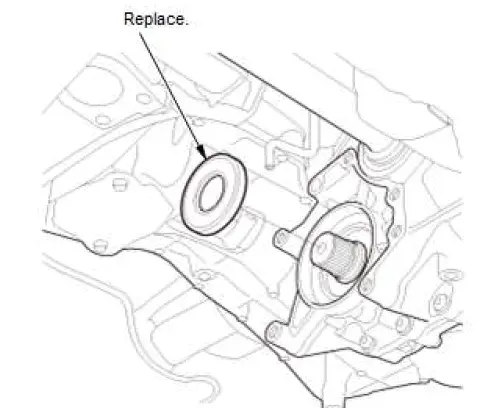

3. Transfer Output Shaft Oil Seal - Remove

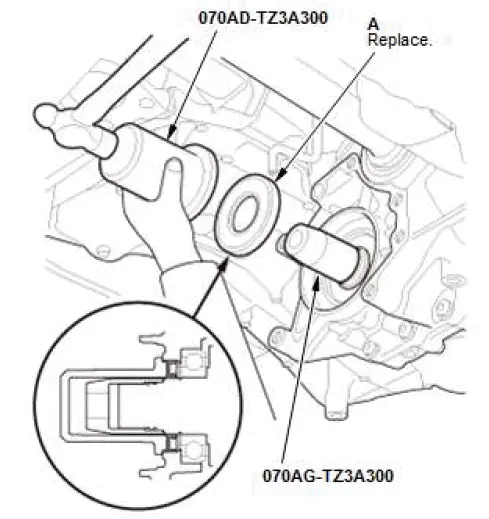

4. Transfer Output Shaft Oil Seal - Install

- Install oil seal installer guide C.
- Install the transfer output shaft oil seal (A) using oil seal
driver C until the oil seal driver has been fully seated.
- Remove oil seal installer guide C.
5. Transfer Assembly - Install

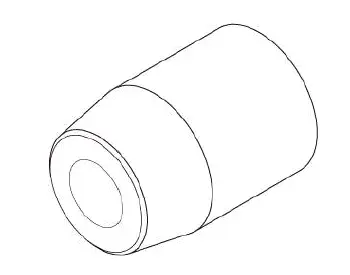

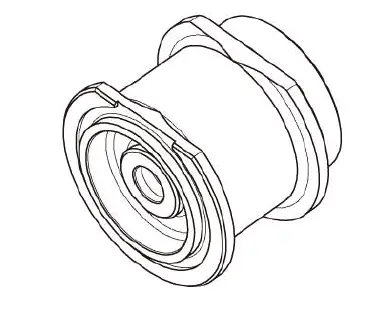

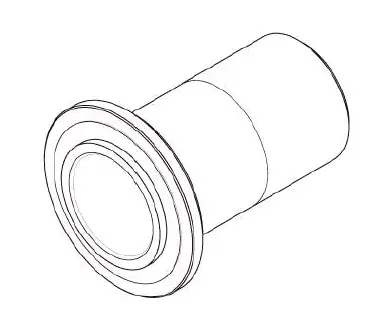

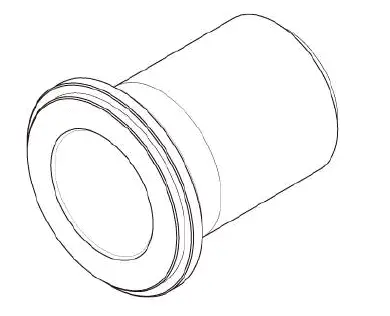

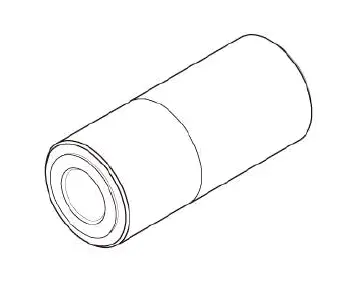

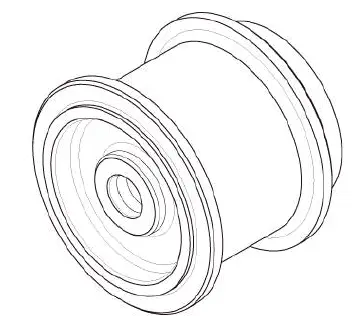

Special Tool Required

- Oil Seal Driver A 070AD-TZ3A100

- Oil Seal Driver B 070AD-TZ30201

- Oil Seal Driver C 070AD-TZ3A300

- Oil Seal Driver D 070AD-TZ3A400

- Oil Seal Driver E 070AD-TZ3A500

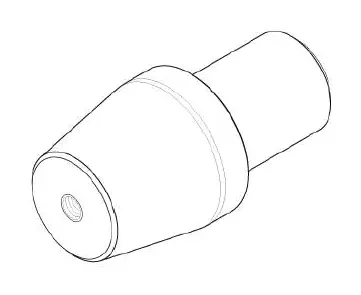

- Oil Seal Installer Guide A 070AG-TZ3A100

- Oil Seal Installer Guide C 070AG-TZ3A300

- Driver Handle, 15 x 135L 07749-0010000
