Honda Pilot: A/F Sensor Removal and Installation

Removal/Installation

Front Bank (Bank 2)

1. Front Bulkhead Cover - Remove

2. Engine Cover - Remove

3. A/F Sensor - Remove

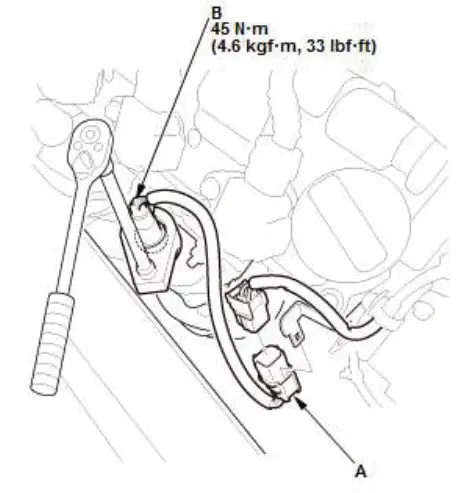

1. Disconnect the connector (A).
2. Remove the front A/F sensor (B).

4. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

Rear Bank (Bank 1)

1. A/F Sensor - Remove

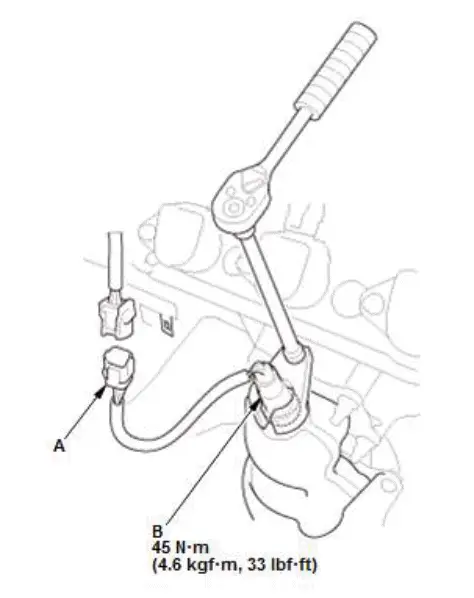

1. Disconnect the connector (A).
2. Remove the rear A/F sensor (B).

2. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

Special Tool Required

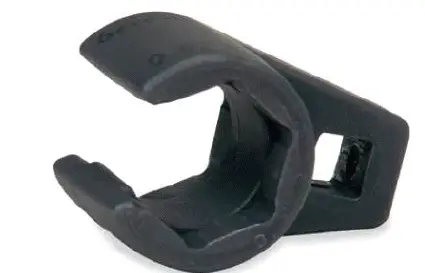

• O2 Sensor Socket Wrench Snap-on SWR2 or Snap-on YA8875, commercially available
