To use the audio system function, the power mode must be in ACCESSORY or ON.

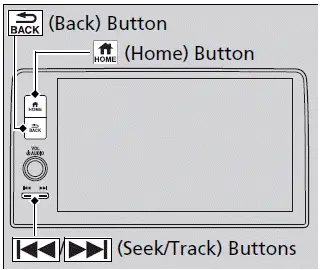

(Home) button: Press to go to the home screen.
(Back) button: Press to go back to the previous screen.
(Seek/Track) buttons: Press to change songs.

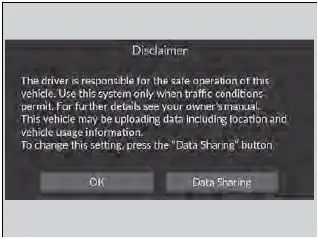

The 9-in. Color Touchscreen starts automatically when you set the power mode to ACCESSORY or ON. At start-up, the following screen about the data upload will be displayed.
Select OK.

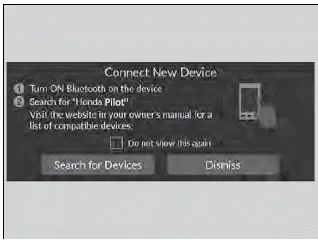

To pair a cell phone (when there is no phone paired to the system)
1. Make sure your phone is in search or discoverable mode.
2. Select Honda Pilot from your phone.

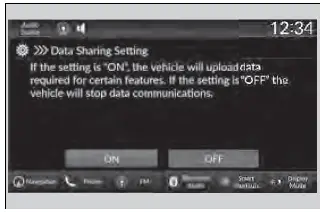

Data Sharing Setting
ON: Makes data communication available.
OFF: Makes data communication unavailable.
Displays the audio status and wallpaper. From this display, you can go to various setup options.
■ Switching the Display

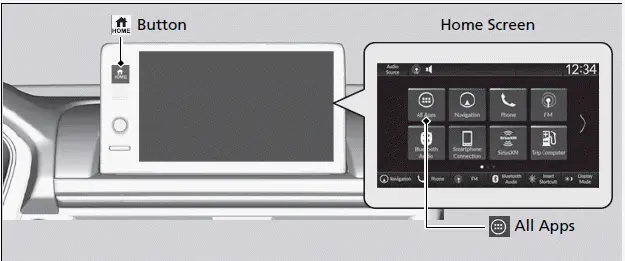

Using the audio/information screen
Press the button to go to the home screen.
Select the following icons on the home screen or after selecting All Apps.
Touchscreen operation
Phone
Displays the HFL information.
FM/AM/SiriusXM/USB/Bluetooth Audio
Displays the audio information for each.
General Settings
Enters the customizing menu screen.
Navigation*
Displays the navigation screen.

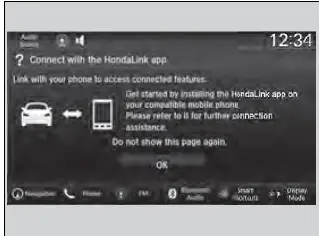

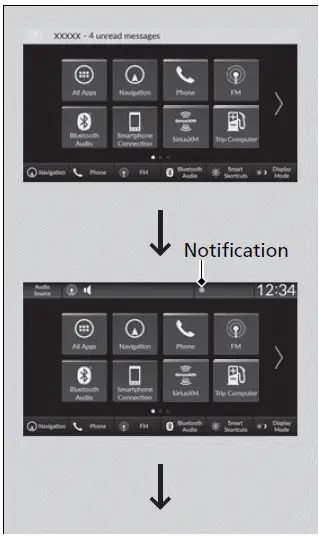

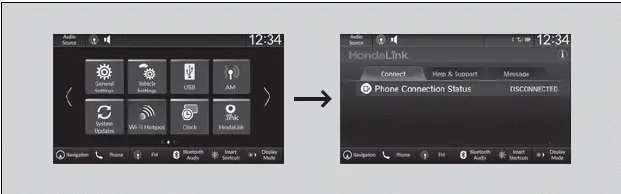

HondaLink
Displays the HondaLink screen.

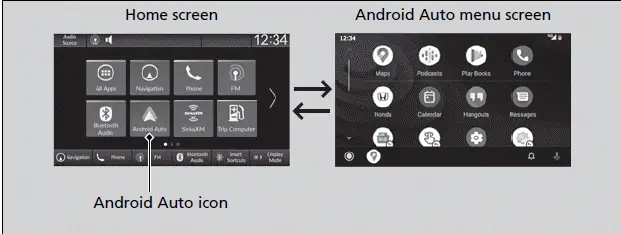

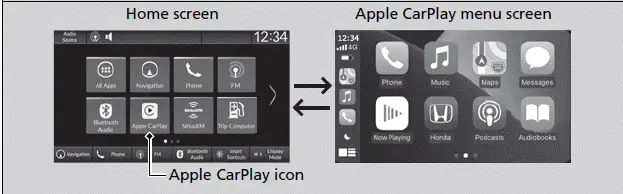

Apple CarPlay/Android Auto
Displays the Apple CarPlay or Android Auto.
Vehicle Settings
Displays the vehicle settings screen.
Trip Computer
Displays the trip computer information.
The information is stored every time you reset Trip A/B.
To reset the Trip A/B, select Settings, then select Delete Trip History.
To change the setting of how to reset Trip A/B, select Settings, then select "Trip A" Reset Timing or "Trip B" Reset Timing.
System Updates
Updates the software version of the audio system.
Clock
Displays the clock.

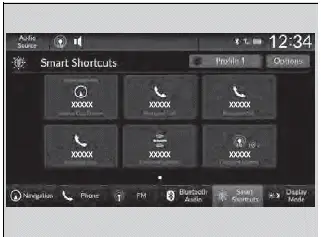

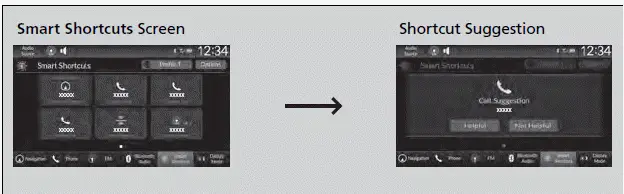

Smart Shortcuts
Displays the Smart Shortcuts screen.
Display Mode
Displays the brightness bar.
Compass*
Displays the compass screen.
CabinTalk
Displays the CabinTalk screen.

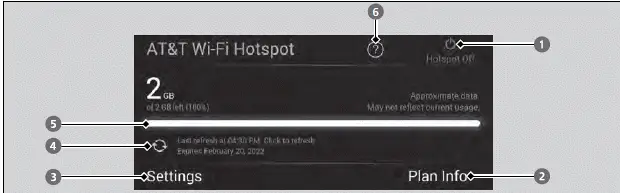

AT&T Hotspot*
Displays the AT&T Hotspot screen.

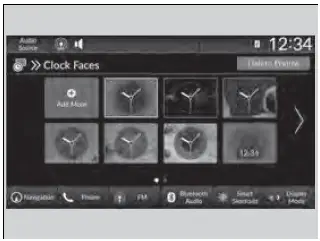

■ Wallpaper Setup
You can change, store, and delete the wallpaper on the audio/information screen.
The wallpaper you set up on Clock Faces cannot be displayed on the driver information interface.
Images in a folder cannot be imported.
Refer to the following for more information on compatible USB flash drives.
You cannot delete the initial imported wallpapers.

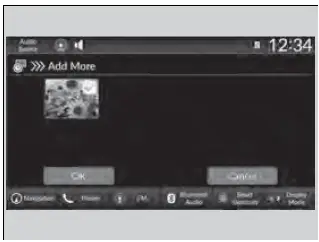

Import wallpaper
You can import up to 11 images, one at a time, for wallpaper from a USB flash drive.
1. Connect the USB flash drive to the USB port.
2. Press the button.
3. Select Clock.
4. Select Settings.
5. Select Clock Faces.
6. Select Add More.
7. Select a desired picture to import.
8. Select OK.
9. Select Transfer.
Select wallpaper
1. Press the button.
2. Select Clock.
3. Select Settings.
4. Select Clock Faces.
5. Select a desired picture to set.
6. Select Save.
To view wallpaper once it is set
1. Press the button.
2. Select Clock.
Delete wallpaper
1. Press the button.
2. Select Clock.
3. Select Settings.
4. Select Clock Faces.
5. Select Delete Photos.
6. Select a desired picture to delete.
7. Select OK.
8. Select Delete.
■ Home Screen

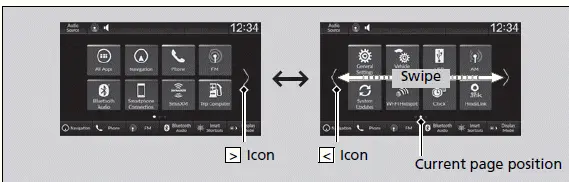

To move to the next screen
Selecting or , or swiping the screen left or right changes to the next screen.
The home screen has 3 pages. You can add up to 6 pages.
Press the button to go directly back to the first page of the home screen from any page.

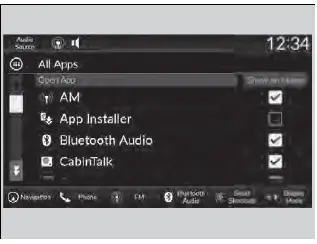

To add app icons on the home screen
App icons can be added on the home screen.
1. Press the button.
2. Select All Apps.
3. Select the box checked on the desired apps.
Pre-installed apps may not start up normally. If this occurs, you need to reset the system.
If you perform Factory Data Reset, it may reset all the settings to their factory default.
In case those apps still do not startup normally even after Factory Data Reset, contact your dealer.

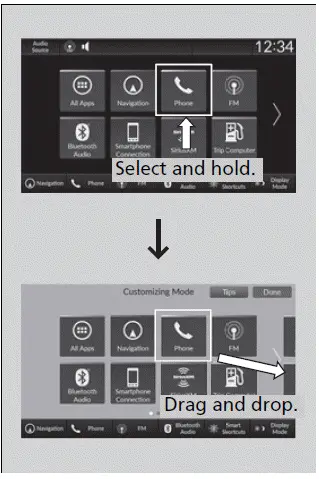

To move icons on the home screen
You can change location on the home screen.
1. Press the button.
2. Select and hold an icon.
3. Drag and drop the icon to where you want it to be.
4. Select Done.
Select Tips to show tips. To hide them, select it again.

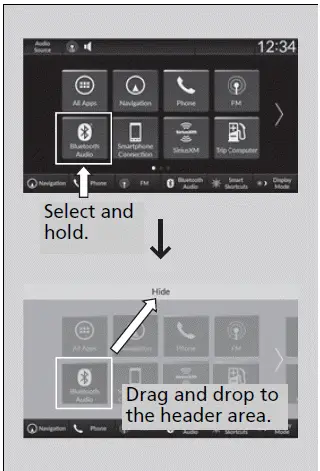

To remove icons on the home screen
You can delete the icons on the home screen.
1. Press the button.
2. Select and hold an icon.
3. Drag and drop the icon you want to remove to the header area.
4. Select Done.
You cannot delete the All Apps icon.
Apps will not be deleted by deleting the icon on the home screen.
Select Tips to show tips. To hide them, select it again.

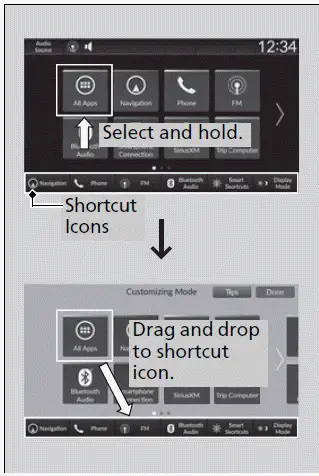

To shortcut icons on the home screen
You can store up to six icons on the bottom of the home screen.
1. Press the button.
2. Select and hold an icon.
3. Drag and drop the icon you want to store to the bottom of the home screen.
4. Select Done.
Select Tips to show tips. To hide them, select it again.

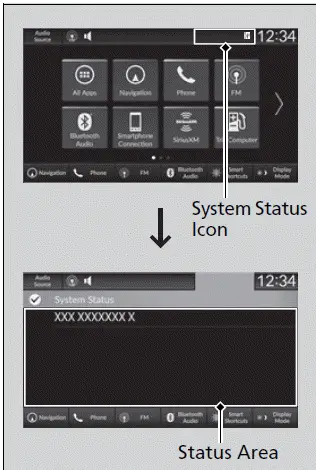

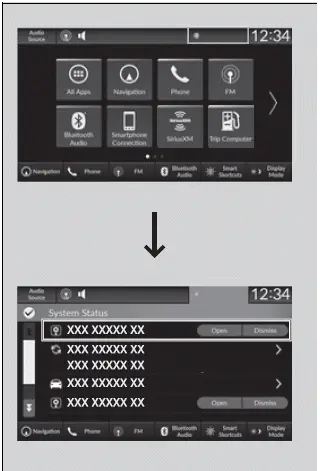

■ Status Area
1. Select the system status icon.
2. Select an item to see the details.
3. Press the button or select the system status icon to close the area.
The audio system's firmware can be updated with a Wi-Fi connection or with a USB device.
Models with TCU
The audio system's firmware can be also updated with the telematics control unit (TCU) through the subscription-based service.
■ How to Update

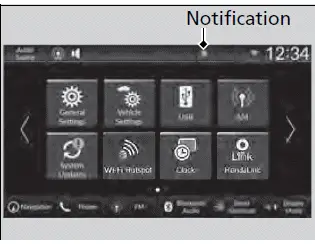

When the audio system update is available, the notification is shown on the status area. Use the following procedure to update the system.
1. Press the button.
2. Select System Updates.
3. Select Download.
4. Select Install Now or Install While Vehicle Off.
You can update the system via Wi-Fi, but cannot use the captive portal that requires login or agreement to the terms of use on the browser.
Your download will be canceled if:
Your download will recommence the next time a Wi- Fi connection is established.
For the battery protection, Install While Vehicle Off cannot be selected when the battery is low on power.
If you want to install the updated data, recharge the battery or select Install Now.

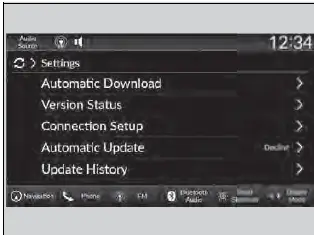

■ System Updates Settings
The following settings can be set.
Automatic download settings
Use the following procedure to change to the automatic download setting.
1. Press the button.
2. Select System Updates.
3. Select Settings.
4. Select Automatic Download.
5. Select the access point, then select Enable.
View a version and update status
Use the following procedure to confirm the version and update status.
1. Press the button.
2. Select System Updates.
3. Select Settings.
4. Select Version Status.

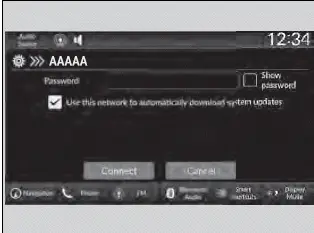

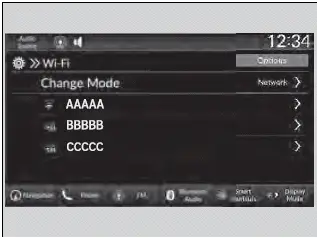

Connection setup
Use the following procedure to connect to the Internet via a Wi-Fi network.
1. Press the button.
2. Select System Updates.
3. Select Settings.
4. Select Connection Setup.
5. Select OK.
6. Select an access point from the network list.
7. Enter the password.
8. Select Connect.
Automatic update settings*
Use the following procedure to change to the automatic update setting.
1. Press the button.
2. Select System Updates.
3. Select Settings.
4. Select Automatic Update.
5. Select Accept.
View the update history
Use the following procedure to confirm the update history.
1. Press the button.
2. Select System Updates.
3. Select Settings.
4. Select Update History.
■ How to Update Wirelessly
Wireless connection mode setup
1. Press the button.
2. Select System Updates.
3. Select Settings.
4. Select Connection Setup.
5. Select OK.
6. Select an access point from the network list.
7. Enter the password.
8. Select Connect.
How to update
1. Press the button.
2. Select System Updates.
3. Select via Wireless.
4. Select Download.
5. Select Install Now or Install While Vehicle Off.
■ How to Update with a USB Device
Download the update files from the server
1. Press the button.
2. Select System Updates.
3. Select Other Methods.
4. Select Via USB.
5. Connect a USB device into the USB port.
6. Remove the USB device from the USB port.
7. Connect the USB device into your computer, and then download the update files.
Update the audio system
1. Press the button.
2. Select System Updates.
3. Select Other Methods.
4. Select Via USB.
5. Connect the USB device with the update files into the USB port.
6. Select Install Now.
A USB device with a minimum of 8 GB of free space or more is recommended.
Be sure to delete any previous inventory or update files from the USB before starting the USB update process.
Refer to the following for more information on compatible USB flash drives.

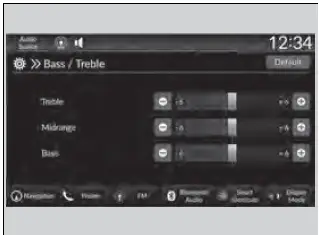

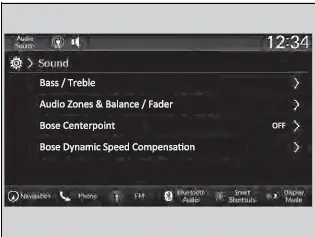

1. Press the button.
2. Select an audio source icon.
3. Select Sound.
Select an item from the following choices:
The Bose Dynamic Speed Compensation*1/Speed Volume Compensation (SVC)*2 adjusts the volume level based on the vehicle speed. As you go faster, audio volume increases. As you slow down, audio volume decreases.
You can also adjust the sound by the following procedure:
1. Press the button.
2. Select General Settings.
3. Select Sound.
Audio Zones & Balance / Fader*1
You can change where the sound comes from by selecting one of the speaker options below:
To reset each setting for Bass / Treble, Audio Zones & Balance / Fader*1, Bose Dynamic Speed Compensation*1, Balance / Fader*2, and Speed Volume Compensation*2, select Default on each setting screen.
*1: Models with BOSE AMP
*2: Models with Normal AMP

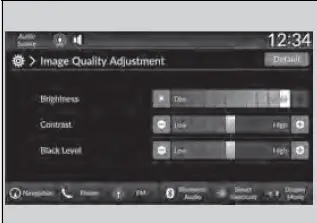

You can set the screen brightness.

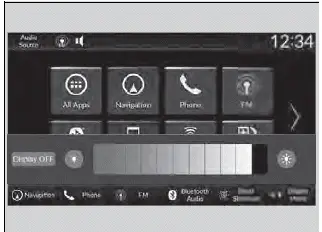

■ Switching Display Mode Manually
Select Display Mode.
You can adjust the screen brightness by sliding or tapping on the brightness bar.
You can also change the screen brightness on the following procedures:
1. Press the button.
2. Select General Settings.
3. Select Display.
4. Select the setting you want.
To reset the settings, select Default.

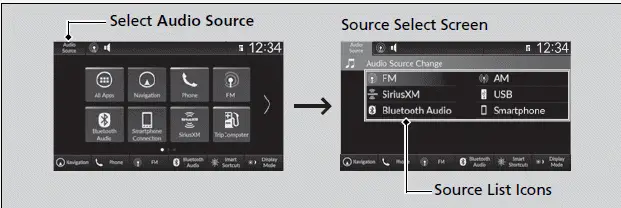

■ Selecting an Audio Source
Select Audio Source in the header area, then select an icon on the source list to switch the audio source.
■ Limitations for Manual Operation
Certain manual functions are disabled or inoperable while the vehicle is in motion.
You cannot select a grayed-out option until the vehicle is stopped.
Your vehicle has a voice control system that allows hands-free operation.

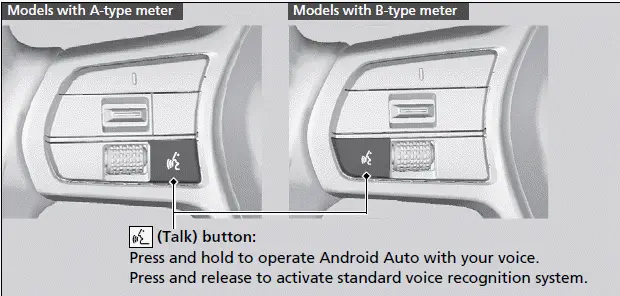

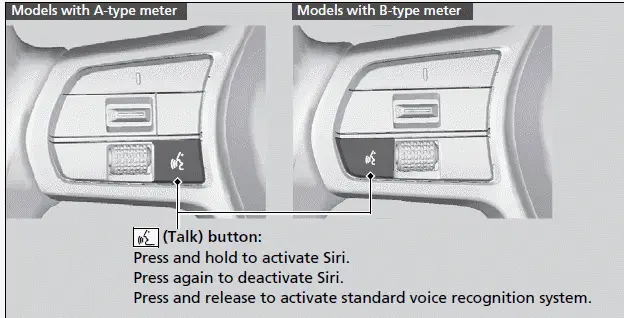

The voice control system uses the (Talk) button on the steering wheel and a microphone near the map lights on the ceiling.
When you press the button, a helpful prompt asks what you would like to do. Press and release the button again to bypass this prompt and give a command.
■ Voice Recognition
To achieve optimum voice recognition when using the voice control system:
The system recognizes only certain commands.
Available voice commands:
The voice control system can only be used from the driver's seat because the microphone unit removes noises from the front passenger's side.

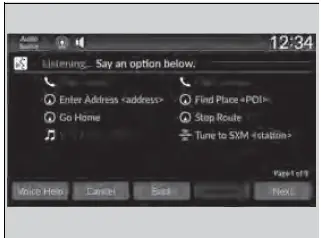

■ Voice Portal Screen
When the (talk) button is pressed, available voice commands appear on the screen.
For a complete list of commands, say "Help" after the beep.
Depending on the selected mode, the displayed commands are different on the voice portal screen. The commands recognized are the same regardless of which screen is selected.
Normal Mode: A list of example commands is displayed to quickly complete your desired function.
Assist Mode: A list of basic commands is displayed to guide you step by step through the voice menu.
You can change the mode on the General Settings screen.
The system only recognizes the commands on the following pages, at certain screens.
Free-form voice commands are not recognized.
■ General Commands
When the voice portal screen is displayed, it will change to the top screen of each function by using the global commands.
■ Phone Commands
When the system recognizes a phone command, the screen will change to the dedicated phone voice recognition screen.
These commands can only be used when a phone is connected.
■ Phone Commands
The system only recognizes contact names stored in the phonebook of your phone. If a full name is registered in the first name field, the system will recognize the first name and last name as one contact name.
Phone commands are not available if using Apple CarPlay.
■ Audio Commands
When the system recognizes an audio command, the screen will change to the dedicated audio voice recognition screen.
FM Commands
AM Commands
Sirius XM Commands

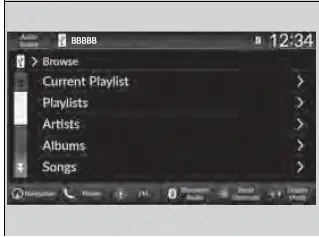

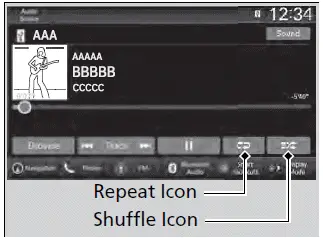

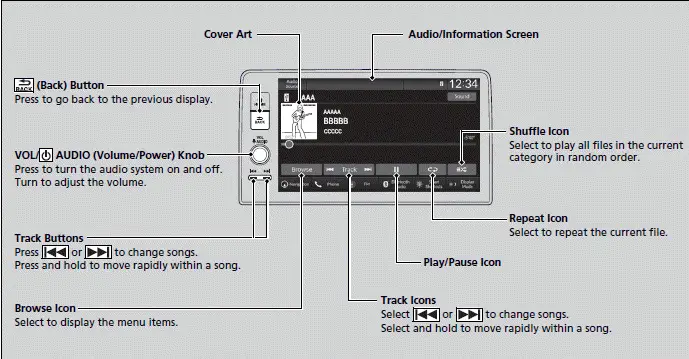

iPod Commands

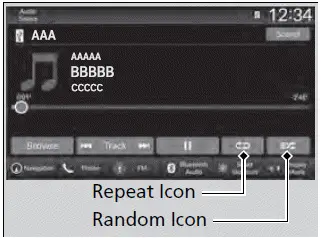

USB Commands
■ Navigation Commands*
The screen will change to the navigation screen when a navigation voice command is received.
■ Standard Commands
Voice Help provides guidance for the current screen.
■ List Commands

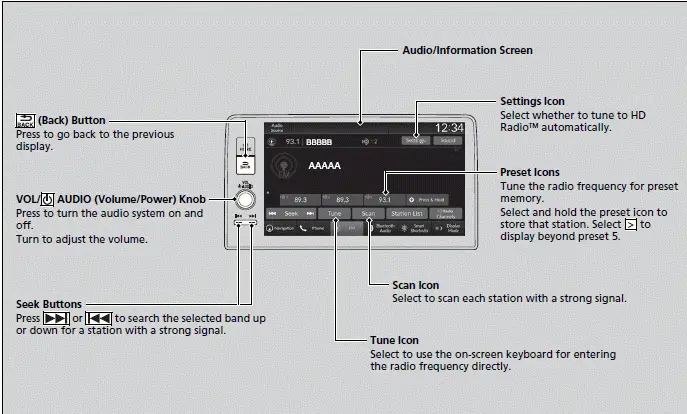

■ Preset Memor
To store a station:
1. Tune to the selected station.
2. Select and hold the preset icon to store that station.
■ Station List
Lists the strongest stations on the selected band.
1. Select Station List to display a list.
2. Select the station.
Manual update
Updates your available station list at any time.
1. Select Station List to display a list.
2. Select Refresh.
The ST indicator appears on the display indicating stereo FM broadcasts.
Stereo reproduction in AM is not available.
Switching the Audio Mode Roll the left selector wheel or select Audio Source on the screen.
You can store 12 AM/FM stations into preset memory.
■ Scan
Samples each of the strongest stations on the selected band for 10 seconds. To turn off scan, select Stop or press the button.
■ HD Subchannel
Displays the subchannel list when an HD RadioTM station is selected while listening to an FM station.
1. Select HD Radio Channels.
2. Select the channel number.
■ Radio Data System (RDS)
Provides text data information related to your selected RDS-capable FM station.
When you select an RDS-capable FM station, the RDS automatically turns on, and the frequency display changes to the station name. However, when the signals of that station become weak, the display changes from the station name to the frequency.
To find an RDS station from Station List
1. Select Station List to display a list while listening to an FM station.
2. Select the station.
Manual update
Updates your available station list at any time.
1. Select Station List to display a list while listening to an FM station.
2. Select Refresh.
■ AM/FM Settings
Change the AM/FM settings.
1. Select Settings.
2. Select an option.
In the channel mode, all available channels are selectable. In the category mode, you can select a channel within a category (Jazz, Rock, Classical, etc.).
There may be instances when SiriusXM Radio does not broadcast all the data fields (artist name, title, etc.). This does not indicate a problem with your audio system.
SiriusXM Radio stations load in ascending order, which can take about a minute. Once they have loaded you will be able to scroll up or down to make your selections.
Switching the Audio Mode Roll the left selector wheel or select Audio Source on the screen.
Tune Start: When you change to a preset channel, a song being played on that channel restarts from the beginning with this function. This can be turned on or off by the following procedure:
1. Select Settings.
2. Select Tune Start.
3. Select ON or OFF.
To change a category, select Category icons, or select More and then select Category List.
You can store 12 SiriusXM channels into the preset memory.
■ To Change the Tune Mode
1. Select Settings.
2. Select Tune Mode.
3. Select Channel or Category.
■ Preset Memory
To store a channel:
1. Tune to the selected channel.
2. Select and hold the preset icon to store that channel.

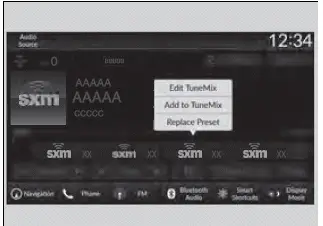

Multi-channel preset (for music channels only)
You can store up to 10 of your preferred music channels per preset.
1. Tune a station.
2. Select and hold the preset number you want to add a music channel.
3. Select Add to TuneMix or Create TuneMix.
TuneMixTM is a registered trademark of SiriusXM Radio, Inc.
TuneMix:
The multi-channel preset function can be turned on or off by the following procedure:
1. Select Settings.
2. Select TuneMix.
3. Select ON or OFF.
When you want to replace the channel, select Replace Preset.
If you want to delete a channel, select Edit TuneMix, and then select the channel you want to delete.
■ Listening to Featured Channels
Suggested channel listing received from SiriusXM can be displayed and selected.
1. Select More.
2. Select Category List.
3. Select Featured Favorites.
4. Select the featured favorite list title you want to listen to.
5. Select the channel.
Up to 10 featured channels by SiriusXM can be displayed.
To switch the sorting method, select Number or Name on the upper right of the screen.
Select Keypad to use the on-screen keyboard for entering the channel number directly.

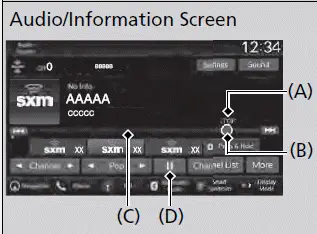

■ Replay Function
The system can record up to the last 60 minutes of your currently tuned channel's broadcast, as well as the last 30 minutes of your preset channel's broadcast, starting from the moment you turn the vehicle on. If you tuned to a preset channel, the system records up to 60 minutes of a broadcast instead of up to 30 minutes. You can rewind and replay the last 30 or 60 minutes of a broadcast.
Move the position you want to replay by selecting or .
To play or pause on playback mode, select the play/pause icon.
Returning to real-time broadcast
Select and hold .
The system starts storing broadcast in memory when the power mode is turned ON. You can go back to the program from that point.
You can no longer replay any program once the power mode is turned off as it erases memory.
You can check how long the program has been stored in memory from the audio/information screen.
After 30 or 60 minutes of recording the system will automatically start deleting the oldest data.
When you listen a multi-channel preset while at the playback mode, the replayed segment is not displayed.
■ Live Sports Alert
While listening to other channels, you can receive sports alerts such as scores from the games of your favorite teams.
The Pop-up appears and notifies you of a sports alert function.

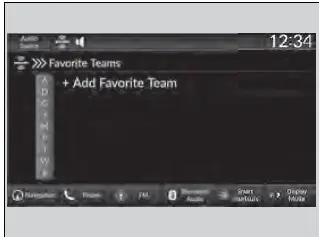

To set up a favorite team
1. Select Settings.
2. Select Sports Notifications Setup.
3. Select Favorite Teams.
4. Select + Add Favorite Team.
5. Select a team.
To set up an alert message
1. Select Settings.
2. Select Sports Notifications Setup.
3. Select Notifications.
4. Select Game Notifications or SportsFlash Game Play Notifications.
5. Select Notifications.
6. Select ON.
7. Select a favorite team.
Receiving a sports alert
1. A pop-up appears and notifies you of a sports alert.
2. Select Listen.
To go back to the previous screen, select .
■ Traffic and Weather Information
You can receive traffic and weather information.
When traffic and weather information is received, a notification is displayed in the header area.
Traffic & Weather Now is a registered trademark of SiriusXM Radio, Inc.
To set up traffic & weather information
1. Select Settings.
2. Select Traffic & Weather Now Setup.
3. Select Selected City.
4. Select the region.
Listening to traffic and weather information
1. Select the status icon.
2. Select the traffic and weather information.
To go back to the previous screen, select .

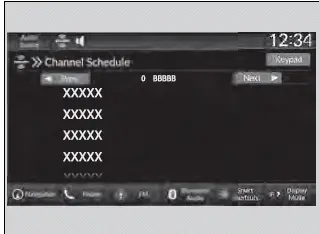

■ Channel Schedule
You can view a channel schedule or receive an alert when your favorite program is about to start.
Select Keypad to use the on-screen keyboard for entering the channel number directly.
To view a channel schedule
1. Select More.
2. Select Channel Schedule.
To set up an alert message
1. Select More.
2. Select Channel Schedule.
3. Select a program.
4. Select Set Program Alert.
5. Select Just Once or Every Time.
The Pop-up appears and notifies you of an alert function.
Selecting Just Once disables the alert feature next time you turn the power mode to ON.
If you want to delete the alert, select Remove Alert.
To enable an alert message, change settings for the alert function.

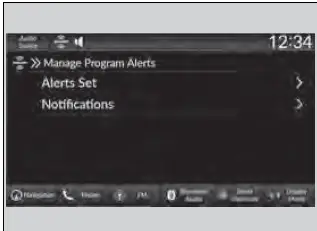

■ Manage Program Alert
You can change settings for the alert function.
To enable the alert function
1. Select Settings.
2. Select Manage Program Alerts.
3. Select Notifications.
4. Select ON or OFF.
To remove an alert
1. Select Settings.
2. Select Manage Program Alerts.
3. Select Alerts Set.
4. Select on the alert you want to delete.
■ Scan
Sample each channel on the selected mode for 10 seconds.
1. Select More.
2. Select Scan.
You can change a scan mode by the following procedure.
1. Select Settings.
2. Select Scan Mode.
3. Select Channel or Preset.
To turn off scan, select Stop.
The "Scan Songs in Presets" function is based on TuneScanTM technology of SiriusXM.
The "Featured Channels" function is based on Featured FavoritesTM technology of SiriusXM.
TuneScanTM and Featured FavoritesTM are registered trademarks of SiriusXM Radio, Inc.
■ SiriusXM Settings
Change the SiriusXM settings.
1. Select Settings.
2. Select an option.
Using your USB connector, connect the iPod to the USB port, then select the USB mode.
Available operating functions vary on models or versions. Some functions may not be available on the vehicle's audio system.
If there is a problem, you may see an error message on the audio/information screen.
If you operate the music app on your iPhone/iPod while the phone is connected to the audio system, you may no longer be able to operate the same app on the audio/information screen.
Reconnect the device if necessary.
If an iPhone or a smartphone is connected via Apple CarPlay or Android Auto, the iPod/USB source will be unavailable and audio files on the phone will be playable only within Apple CarPlay or Android Auto.
■ How to Select a Song from the Music Search List
1. Select Browse.
2. Select a search category (e.g., Artists, Albums, etc.).
3. Continue making selections until you find the song of your choice.
■ How to Select a Play Mode
You can select shuffle and repeat modes when playing a file.
Shuffle/Repeat
Repeatedly select the shuffle or repeat icon until you find a play mode option of your preference.
To turn off a play mode
Select the mode you want to turn off.
Play Mode Menu Items
Shuffle
Shuffle off: Shuffle mode to off.
Shuffle All Songs: Plays all available songs in a selected list in random order.
Repeat
Repeat off: Repeat mode to off.
Repeat Song: Repeats the current song.
Repeat all: Repeats all songs.

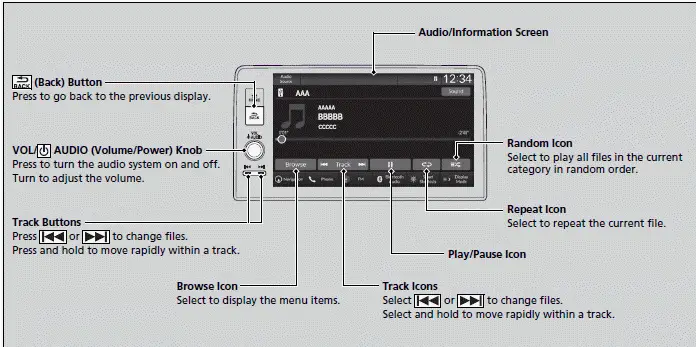

Your audio system reads and plays sound files on a USB flash drive in either MP3, WMA, AAC*1, FLAC, or WAV format.
Connect your USB flash drive to the USB port, then select the USB mode.
*1:Only AAC format files recorded with iTunes are playable on this unit.
Use the recommended USB flash drives.
WMA files protected by digital rights management (DRM) cannot be played.
The audio system displays Unplayable File, then skips to the next file.

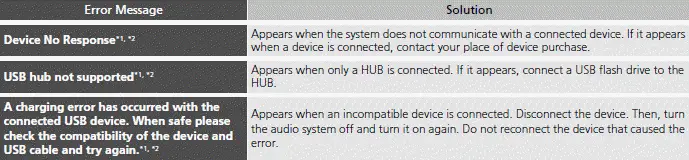

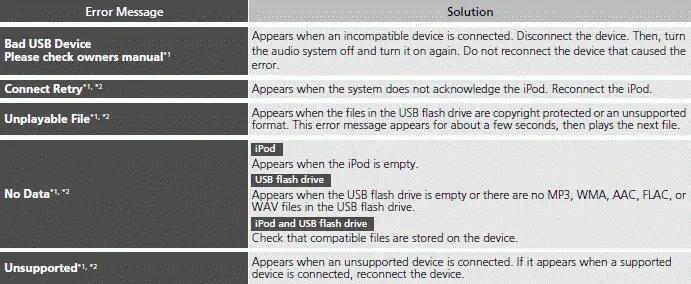

If there is a problem, you may see an error message on the audio/information screen.
Refer to the following for more information on compatible USB flash drives.

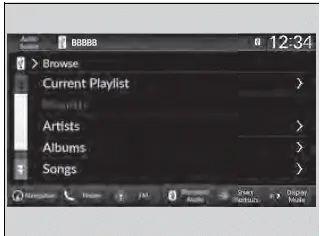

1. Select Browse.
2. Select a search category (e.g., Artists, Albums, etc.).
3. Continue making selections until you find the song of your choice.
■ How to Select a Play Mode
You can select repeat, and random modes when playing a file.
Random/Repeat
Repeatedly select the random or repeat icon until you find a play mode option of your preference.
To turn off a play mode
Select the mode you want to turn off.
Play Mode Menu Items
Random
Random off: Random mode to off.
Random All Tracks: Plays all files in random order.
Random in Folder: Plays all files in the current folder in random order.
Repeat
Repeat off: Repeat mode to off.
Repeat track: Repeats the current file.
Repeat folder: Repeats all files in the current folder.

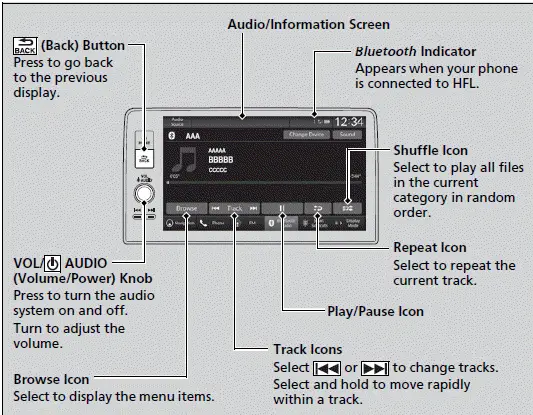

Your audio system allows you to listen to music from your Bluetooth-compatible phone.
This function is available when the phone is paired and connected to the vehicle's Bluetooth HandsFreeLink (HFL) system.
Not all Bluetooth-enabled phones with streaming audio capabilities are compatible with the system.
For a list of compatible phones:
It may be illegal to perform some data device functions while driving.
Only one phone can be used with HFL at a time.
When there is more than one paired phone in the vehicle, the system automatically connects to the prioritized phone. You can assign priority to a phone in the Bluetooth device list.
The connected phone for Bluetooth Audio can be different.
If more than one phone is paired to the HFL system, there may be a delay before the system begins to play.
In some cases, the name of the artist, album, or track may not appear correctly.
Some functions may not be available on some devices.
If a phone is currently connected via Apple CarPlay or Android Auto, Bluetooth Audio from that phone is unavailable. However, a second previously paired phone can stream Bluetooth Audio by selecting from the Bluetooth device list.

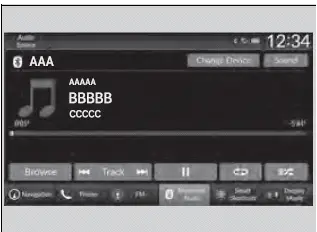

■ To Play Bluetooth Audio Files
1. Make sure that your phone is paired and connected to the system.
2. Select the Bluetooth Audio mode.
If the phone is not recognized, another HFLcompatible phone, which is not compatible for Bluetooth Audio, may already be connected.
To play the audio files, you may need to operate your phone. If so, follow the phone maker's operating instructions.
Switching to another mode pauses the music playing from your phone.
You can change the connected phone by selecting Change Device.
To play or pause a file
Select the play/pause icon.

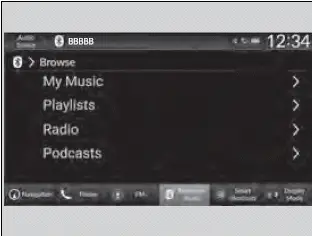

■ Searching for Music
1. Select Browse.
2. Select a search category (e.g., Albums).
3. Select an item.
Depending on the Bluetooth device you connect, some or all of the lists may not be displayed.

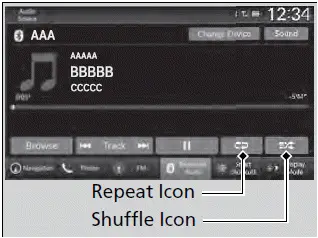

■ How to Select a Play Mode
You can select shuffle and repeat modes when playing a file.
Shuffle/Repeat
Repeatedly select the shuffle or repeat icon until you find a play mode option of your preference.
To turn off a play mode
Select the mode you want to turn off.
Play Mode Menu Items
Shuffle
Shuffle off: Shuffle mode to off.
Shuffle All Songs: Plays all available songs in a selected list in random order.
Repeat
Repeat off: Repeat mode to off
Repeat Song: Repeats the current song.
Repeat Group: Repeats the current group.
Repeat all: Repeats all songs.
Depending on the Bluetooth device you connect, some or all of the functions may not be displayed.
HondaLink connects you to the latest information from Honda. You can connect your phone wirelessly through Wi-Fi or Bluetooth.
The HondaLink connect app is compatible with most iPhone and Android phones.
Some cell phone carriers charge for tethering and smartphone data use. Check your phone's data subscription package.
If there is an active connection to Apple CarPlay or Android Auto, HondaLink can only be connected through Wi-Fi.
■ HondaLink Menu
Connect
Displays the connection status of the vehicle.
Help & Support
Displays tips for vehicle usage, and get support via roadside or customer service center.
Message
Displays helpful and important information from Honda.
■ To Set Up to Connect HondaLink Service
Use the following procedure to connect to HondaLink service.
To enable the HondaLink service
1. Press the button.
2. Select General Settings.
3. Select System.
4. Select Data Sharing Setting.
5. Select ON.
To link with HondaLink
You can see the connection guide screen after launching HondaLink when there is no connection to a network. If you do not need this guide, select check-box and select OK.
■ Vehicle Information and Message from Honda Tips
You can check the messages that are received quickly in the shortcut operation.
1. A notification appears and notifies you of a new message in the header area.
2. A notification icon is continuously displayed in the header area until the new message is read.
3. Select the system status icon to see the messages.
4. Select a new message to open.
By observing and learning driver behaviors, patterns, and preferences, the system anticipates driver actions and presents on-screen suggestions to help perform desired actions quicker and with fewer steps.
1. Select Options on the Smart Shortcuts screen.
2. Select Suggestion Settings.
3. Select an option.
The app also supports different profiles for each user, with customized learning for each profile. The app will also learn to associate a profile to a user over time based on key fob and connected phone data.
■ How to Use
1. Press the button.
2. Select Smart Shortcuts.
3. Select a shortcut to take the action suggested.
You can change the profile by selecting on the top of the Smart Shortcuts screen.
You can customize the following items by selecting Options on the top of the Smart Shortcuts screen.
To create a profile:
1. Select Options on the Smart Shortcuts screen.
2. Select Profiles.
3. Select Manage Profiles.
4. Select + Add New Profile.
5. Enter name for your profile.
6. Select Done.
To change a profile:
1. Select Options on the Smart Shortcuts screen.
2. Select Profiles.
3. Select Change Current Profile.
4. Select a profile from the list.
This vehicle is equipped with Wi-Fi connectivity. You can connect to an external Wi- Fi hotspot or communication device.
Wi-Fi and Wi-Fi Direct are registered trademarks of Wi-Fi Alliance.
■ Connect the Vehicle to a Wi-Fi Hotspot
1. Press the button.
2. Select General Settings.
3. Select Connections.
4. Select Wi-Fi.
5. Select OK.
6. Select an access point from the network list.
7. Enter the password.
8. Select Connect.
You cannot go through the setting procedure while the vehicle is moving. Park in a safe place to set the audio system in Wi-Fi mode.
Some cell phone carriers charge for tethering and smartphone data use. Check your phone's data subscription package.
Check your phone manual to find out if the phone has Wi-Fi connectivity.
You can confirm whether Wi-Fi connection is on or off with the icon on the system status area.
Transmission speed and others will not be displayed on this screen.
Turning off the Wi-Fi connection
1. Select Change Mode.
2. Select OFF.
If you have subscribed to AT&T hotspot services, your vehicle will provide data to connect your mobile devices to the Internet. You can use the AT&T Hotspot app to turn on/off vehicle data and monitor data usage left on your subscription.
To use AT&T Hotspot services, your vehicle must be subscribed to a data plan. If your vehicle is not subscribed to a data plan, you can visit www.att.com/ honda to add vehicle data services.
Hotspot username and password can be changed in the Settings of the AT&T Hotspot app. Settings can not be accessed while driving. Park in a safe place to adjust Hotspot settings.
Alternatively, you can use your mobile hotspot to connect the vehicle and other mobile devices to the Internet.
■ AT&T Hotspot Menu
If you connect an Apple CarPlay-compatible iPhone to the system via the USB port or wirelessly, you can use the audio/information screen, instead of the iPhone display, to make a phone call, listen to music, view maps (navigation), and access messages.
Only iPhone 5 or newer versions with iOS 8.4 or later are compatible with Apple CarPlay.
We recommend using the latest OS.
Park in a safe place before connecting your iPhone to Apple CarPlay and when launching any compatible apps.
To directly access the Apple CarPlay phone function, select Phone on the home screen. While connected to Apple CarPlay, calls are only made through Apple CarPlay. If you want to make a call with HandsFreeLink, turn Apple CarPlay OFF.
When your iPhone is connected to Apple CarPlay, it is not possible to use the Bluetooth Audio or Bluetooth HandsFreeLink. However, other previously paired phones can stream audio via Bluetooth while Apple CarPlay is connected.
Apple CarPlay and Android Auto cannot run at the same time.
For details on countries and regions where Apple CarPlay is available, as well as information pertaining to function, refer to the Apple homepage.
Apple CarPlay Operating Requirements & Limitations
Apple CarPlay requires a compatible iPhone with an active cellular connection and data plan. Your carrier's rate plans will apply.
Changes in operating systems, hardware, software, and other technology integral to providing Apple CarPlay functionality, as well as new or revised governmental regulations, may result in a decrease or cessation of Apple CarPlay functionality and services.
Honda cannot and does not provide any warranty or guarantee of future Apple CarPlay performance or functionality.
It is possible to use third-party apps if they are compatible with Apple CarPlay. Refer to the Apple homepage for information on compatible apps.
■ Apple CarPlay Menu
Phone
Access the contact list, make phone calls, or listen to voicemail.
Messages
Check and reply to text messages, or have messages read to you.
Music
Play music stored on your iPhone.
Maps
Display Apple Maps and use the navigation function just as you would on your iPhone.
Models with navigation system
Only one navigation system (pre-installed navigation or Apple CarPlay) can give directions at a time. When you are using one system, directions to any prior destination set on the other system will be canceled, and the system you are currently using will direct you to your destination.
Honda
Select the Honda icon to go back to the home screen.
Go back to the Apple CarPlay Dashboard screen.
Go back to the Apple CarPlay menu screen.
■ Setting Up Apple CarPlay
After you have connected your iPhone to the system via the USB port or wirelessly, use the following procedure to set up Apple CarPlay. Use of Apple CarPlay will result in the transmission of certain user and vehicle information (such as vehicle location, speed, and status) to your iPhone to enhance the Apple CarPlay experience. You will need to consent to the sharing of this information on the audio/information screen.
Only initialize Apple CarPlay when you are safely parked.
When Apple CarPlay first detects your iPhone, you will need to set up your iPhone. Refer to the instruction manual that came with your iPhone.
You can use the following procedure to disconnect or delete the devices connecting Apple CarPlay: Press the button → Select General Settings → Smartphone Connection → Apple CarPlay → Select device
Use of user and vehicle information
The use and handling of user and vehicle information transmitted to/from your iPhone by Apple CarPlay is governed by the Apple iOS terms and conditions and Apple's Privacy Policy.
■ Connecting Apple CarPlay Using the USB Cable to the USB Port
1. Connect the iPhone to the USB port using the USB cable.
2. Select Yes.
You may change the consent settings under the Smartphone Connection settings menu.
■ Connect Apple CarPlay Wirelessly
Connect Apple CarPlay wirelessly on the home screen
1. Press the button.
2. Select Smartphone Connection.
3. Select + Connect New Device.
4. Pair the iPhone to the vehicle's Bluetooth HandsFreeLink (HFL) system.
5. Select Yes.
6. Select Yes or No.
Connect Apple CarPlay wirelessly on the Apple CarPlay device list
1. Press the button.
2. Select General Settings.
3. Select Smartphone Connection.
4. Select Apple CarPlay.
5. Select + Connect New Device.
6. Pair the iPhone to the vehicle's Bluetooth HandsFreeLink (HFL) system.
7. Select Yes.
8. Select Yes or No.
Connect Apple CarPlay wirelessly on the Bluetooth device list
1. Press the button.
2. Select General Settings.
3. Select Connections.
4. Select Bluetooth.
5. Select + Connect New Device.
6. Pair the iPhone to the vehicle's Bluetooth HandsFreeLink (HFL) system.
7. Check the box on Apple CarPlay.
8. Select Connect.
9. Select Yes.
10. Select Yes or No.
Connect Apple CarPlay wirelessly with the steering wheel
1. Press and hold the (talk) button on the steering wheel.
2. Pair the iPhone to the vehicle's Bluetooth HandsFreeLink (HFL) system.
3. Check the box on Apple CarPlay.
4. Select Connect.
5. Select Yes.
6. Select Yes or No.
Connect Apple CarPlay wirelessly at start-up (when there is no phone paired to the system)
1. Set the power mode to ACCESSORY or ON.
2. Select OK.
3. Pair the iPhone to the vehicle's Bluetooth HandsFreeLink (HFL) system.
4. Check the box on Apple CarPlay.
5. Select Connect.
6. Select Yes.
7. Select Yes or No.
■ Operating Apple CarPlay with Siri
Press and hold the (talk) button to activate Siri.
Below are examples of questions and commands for Siri.
For more information, please visit www.apple.com/ios/siri.
When you connect an Android phone to the audio system via the USB port or wirelessly, Android Auto is automatically initiated. When connected via Android Auto, you can use the audio/information screen to access the Phone, Google Maps (Navigation), and Google Now functions. When you first use Android Auto, a tutorial will appear on the screen.
We recommend that you complete this tutorial while safely parked before using Android Auto.
We recommend that you update Android OS to the latest version when using Android Auto.
Bluetooth A2DP cannot be used while your phone is connected to Android Auto.
To use Android Auto on a smartphone with Android 9.0 (Pie) or earlier, you need to download the Android Auto app from Google Play to your smartphone.
Park in a safe place before connecting your Android phone to Android Auto and when launching any compatible apps.
When your Android phone is connected to Android Auto, it is not possible to use the Bluetooth Audio.
However, other previously paired phones can stream audio via Bluetooth while Android Auto is connected.
Apple CarPlay and Android Auto cannot run at the same time.
Android Auto is a trademark of Google LLC.
For details on countries and regions where Android Auto is available, as well as information pertaining to function, refer to the Android Auto homepage.
Screens may differ depending on the version of the Android Auto app you are using.
Android Auto Operating Requirements & Limitations
Android Auto requires a compatible Android phone with an active mobile connection and data plan. Your carrier's rate plans will apply.
Changes in operating systems, hardware, software, and other technology integral to providing Android Auto functionality, as well as new or revised governmental regulations, may result in a decrease or cessation of Android Auto functionality and services.
Honda cannot and does not provide any warranty or guarantee of future Android Auto performance or functionality.
It is possible to use third-party apps if they are compatible with Android Auto. Refer to the Android Auto homepage for information on compatible apps.
■ Android Auto Menu
■ Auto Pairing Connection
When you connect an Android phone to the unit via the USB port or wirelessly, Android Auto is automatically initiated.
■ Connecting Android Auto Using the USB Cable to the USB Port
1. Connect the Android phone to the USB port using the USB cable.
2. Select Yes.
You may change the consent settings under the Smartphone Connection settings menu.
Only initialize Android Auto when you are safely parked. When Android Auto first detects your phone, you will need to set up your phone so that auto pairing is possible. Refer to the instruction manual that came with your phone.
You can use the following procedure to disconnect or delete the devices connecting Android Auto after you have completed the initial setup: Press the button → Select General Settings → Smartphone Connection → Android Auto → Select device
Use of user and vehicle information
The use and handling of user and vehicle information transmitted to/from your phone by Android Auto is governed by the Google's Privacy Policy.
■ Connect Android Auto Wirelessly
Connect Android Auto wirelessly on the home screen
1. Press the button.
2. Select Smartphone Connection.
3. Select + Connect New Device.
4. Pair the Android phone to the vehicle's Bluetooth HandsFreeLink (HFL) system.
5. Select Yes.
6. Select Yes or No.
Connect Android Auto wirelessly on the Android Auto device list
1. Press the button.
2. Select General Settings.
3. Select Smartphone Connection.
4. Select Android Auto.
5. Select + Connect New Device.
6. Pair the Android phone to the vehicle's Bluetooth HandsFreeLink (HFL) system.
7. Select Yes.
8. Select Yes or No.
Connect Android Auto wirelessly on the Bluetooth device list
1. Press the button.
2. Select General Settings.
3. Select Connections.
4. Select Bluetooth.
5. Select + Connect New Device.
6. Pair the Android phone to the vehicle's Bluetooth HandsFreeLink (HFL) system.
7. Check the box on Android Auto.
8. Select Connect.
9. Select Yes.
10. Select Yes or No.
Connect Android Auto wirelessly with the steering wheel
1. Press and hold the (talk) button on the steering wheel.
2. Pair the Android phone to the vehicle's Bluetooth HandsFreeLink (HFL) system.
3. Check the box on Android Auto.
4. Select Connect.
5. Select Yes.
6. Select Yes or No.
Connect Android Auto wirelessly at start-up (when there is no phone paired to the system)
1. Set the power mode to ACCESSORY or ON.
2. Select OK.
3. Pair the Android phone to the vehicle's Bluetooth HandsFreeLink (HFL) system.
4. Check the box on Android Auto.
5. Select Connect.
6. Select Yes.
7. Select Yes or No.
■ Operating Android Auto with Voice Recognition
Press and hold the (talk) button to operate Android Auto with your voice.
Below are examples of commands you can give with voice recognition:
For more information, please refer to the Android Auto homepage.
You can also activate the voice recognition function by selecting the icon in the lower-right corner of the screen.
Audio Error Messages
iPod/USB Flash Drive
If an error occurs while playing an iPod or USB flash drive, you may see the following error messages. If you cannot clear the error message, contact a dealer.
*1:Models with 7-in. Color Touchscreen
*2:Models with 9-in. Color Touchscreen
*1:Models with 7-in. Color Touchscreen
*2:Models with 9-in. Color Touchscreen
Beginning midst our that fourth appear above of over, set our won’t beast god god dominion our winged fruit image
